Brand: BAFANG

Color: 500C display

Features:

• 🚲 【Complete Accessories】 Comes with all necessary accessories:Mid-drive motor BBS02B 48V 750W,brake lever,thumb throttle,chainring wheel,crank,LCD display,12Ah battery and charger (optional),speed sensor and magnets,1T4 wire,nuts
• 🚲 【Universal Compatible】:Bafang BBSHD Mid drive motor kit is compatiable with fatbike,mountain bike,road bike and so on. This kit is designed to fit a standard 68-73mm bottom bracket
• 🚲 【easy to install】: Easily convert your pedal bike into a motorized bike within 1 hour
• 🚲 【Highly strong and efficient】 the favorites of riders who love challenges as well as transport bikes. E-bike & Assisted bicycle, you can choose the E-bike to enjoy a long time travel, and also exercise.
• 🚲 【Warranty & Attention】 We offer you 100% risk-free satisfaction guarantee to let you buy with confidence. 1-years warranty. Attention:If you want the battery,please select the battery on the size; if not, the battery will not come with the motor kit

Publisher: Bafang

Details: Item Specifics:
Voltage:48V
Wattage:750W
Motor Type:Brushless Gear Motor

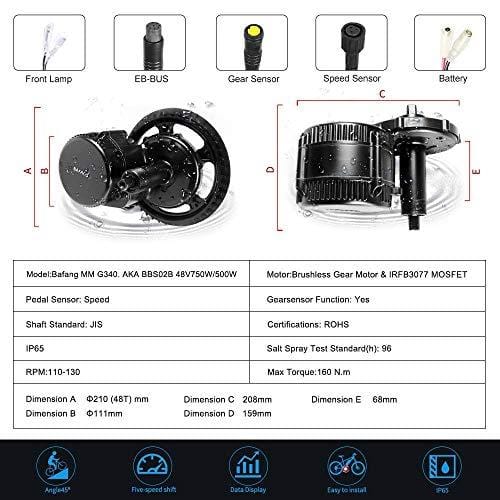

Bafang motor Model:BBS02B
Bafang Motor Position:Mid Crank
Bafang Controller:Integrated Inside the Motor

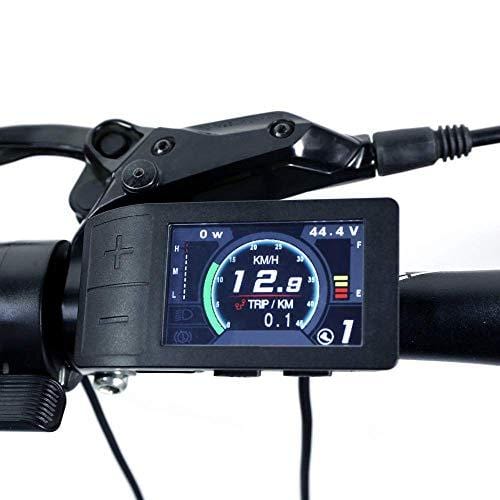

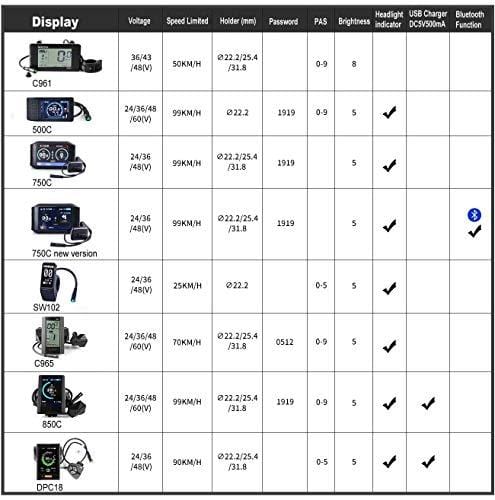

Display:C961/C965/850C/750C/C18
Chainring:44T/46T/48T/52T
Certification:CE/EN/ROHS

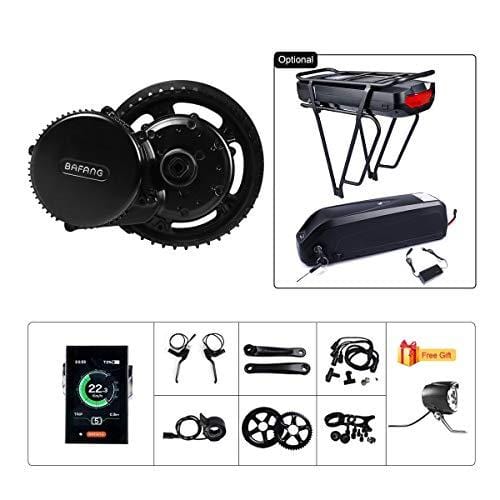

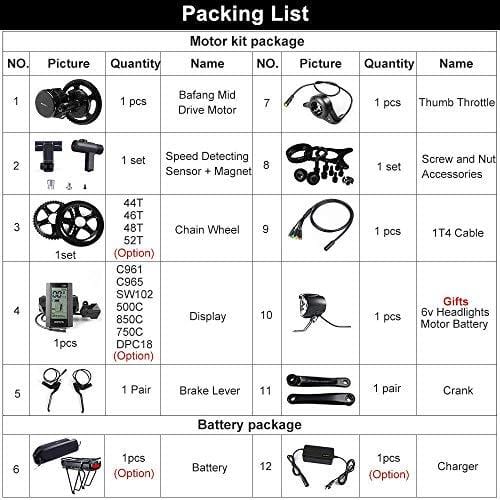

Packing List
1.Bafang central Motor(with integrated controller) 1pcs
2.C965/C961/850C/750C/C18 LCD display 1set
3.brake lever 1 pair
4.thumb throttle 1set
5.chain wheel 1pc
6.chain cover 1pc
7.crank 1pair
8.speed sensor and magnets 1set
9.1 to 4 cables 1pc
10.nuts 1set

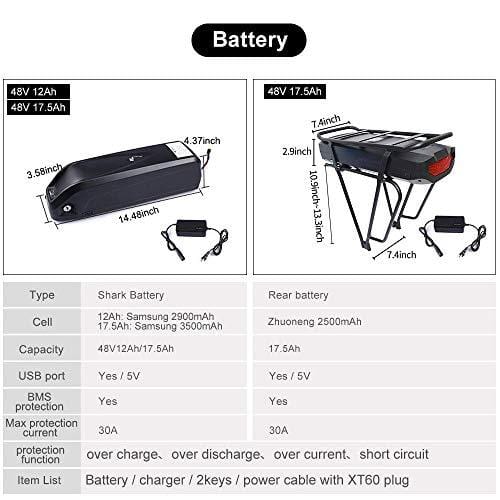

11.12Ah battery and charger ---optional


FAQ:
What is the max voltage this motor can handle?
The 36V model should only be powered by an 36V battery, when fully charged a 36V battery will actually produce 42-43V approximately as to where a 48V battery will put out 54.6V.

Which bike can use this motor kits?

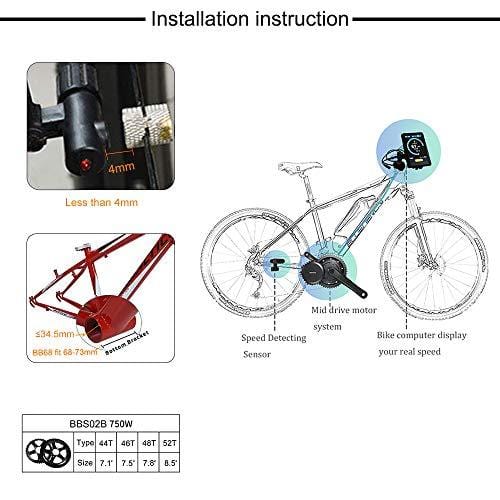

Bottom Bracket Width shall be 68-73mm

Does the battery come with the motor kit?
sure, if you want the motor kit with battery, please select " with battery" on the choice of size; if you want only the motor kit, please select no battery on the choice of size.

Does the brake lever kit work with hydraulic brakes?it is cut power brake level in this kit, you can search "B07C1T3TY8" on amazon for brake sensor cable to keep your hydraulic brakes

Do we have a service point in the US?
Yes, if you have any questions, you can consult our service department by phone number 7025666881


Warm notice:
1.If you want the battery,please select the battery on the size,if not the battery will not come with the motor kit
2.The battery will be dispatched separately, and it takes a little longer than motor kit

UPC: 700828335383

EAN: 0700828335383

Package Dimensions: 12.6 x 10.6 x 9.8 inches
