Brand: ECO LLC

Features:

• Money Save---Get 30% Gederal Solar Tax Credit and Saving Up to 35% of Electricity Bills Per Year .
• Power Generation Plan---1.8 KW Solar Power Generates Average 7kWh of Electricity Per Day for Home.

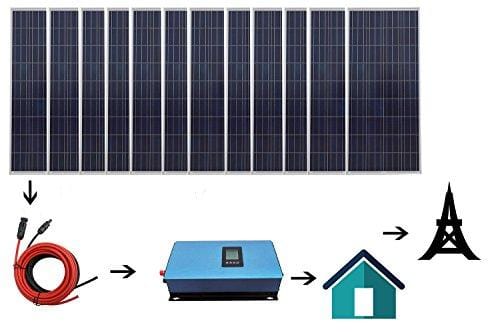

• Flexible Use of Electricity---In Cloudy Days, When the Power Supply is Insufficient,Automatically Obtained Power from Your State Grid System to Supply Your Load.
• Solar Panel--- Corrosion-resistant Aluminum Frame Allows the Panels to Use for Decades,As Well As withstand High Winds (2400Pa) and Snow Loads (5400Pa) Outdoors.
• Grid Tie Iverter---Make Full Use of All Types of Buildings' Surface that Face to the Sun In the City As Well As Fast and Easy Installation of Solar Modules and Grid Tie Inverter. It Gust Needs VeryLow Maintenance Costs.

Publisher: ECO LLC

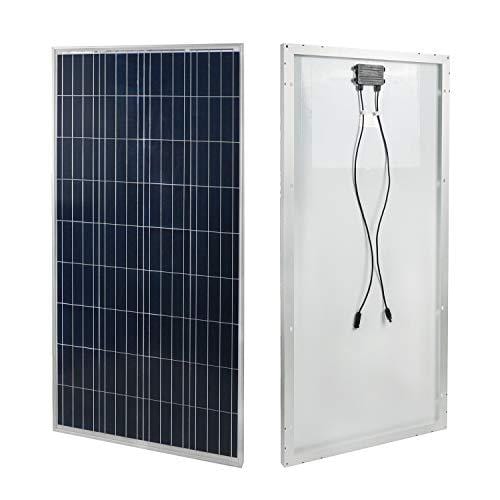

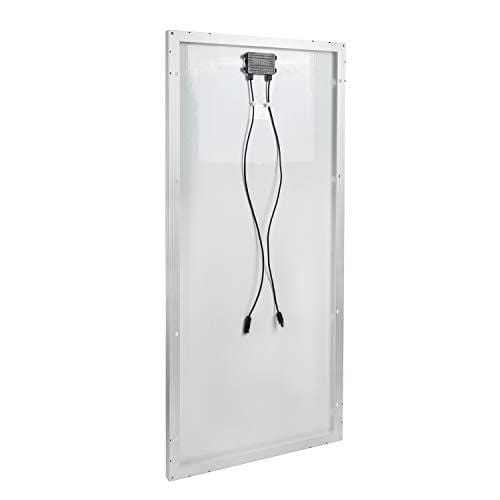

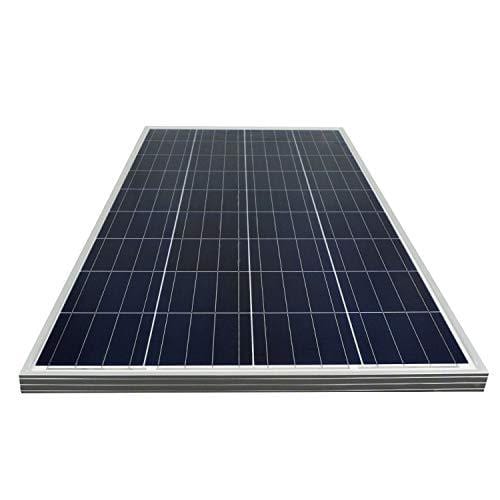

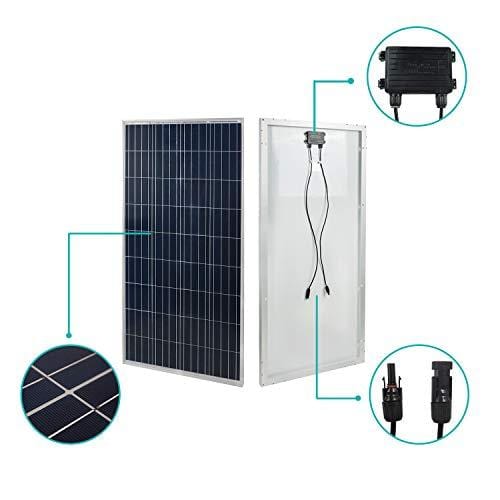

Details: 150W 18V Poly Solar Panel Specifications
Rated Power:150W
Open circuit voltage:22.4V
Optimum power voltage : 18V
Short circuit current (Isc): 9.02A
Working current (Iop):8.33A
Type:36pcs Poly Silicon(4*9)
Size: 154.00*71.50*6.00 cm
Kind of glass and its thickness:Low Iron, high transparency tempered glass of 3.2mm

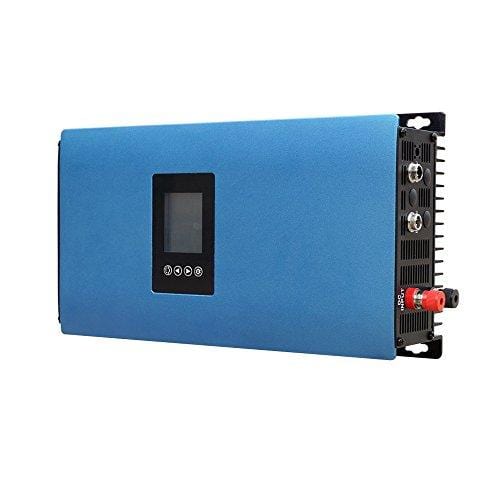

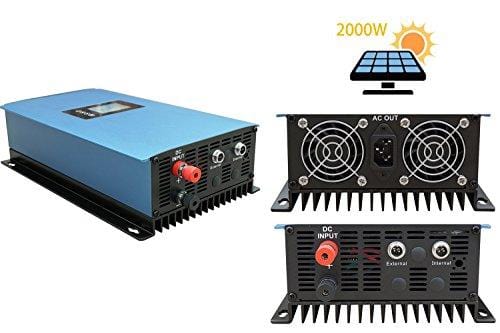

2000W Grid Tie Power Inverter
Type: 220V
Rated Power (Peak/Continuous): 2000W / 1800W
DC Input Voltage: 45V~90V
AC Output Voltage Range: 190V~260V
AC Output Frequency Range: 46Hz~65Hz
Peak Inverter Efficiency: 92%
Night Power Consumption: 1.5W
Mppt efficiency: 99%
Anit-Island Protection:yes
Operating Temperature Range: -20℃~ 45℃
Storage Tmeperature Range: -40℃~ 65℃
Size: 51.5x30x15cm(20.3"x11.8"x5.9")

Installing Sunshine Grid Tie Power System involves several key steps:
1. Considering the total capacity of the grid tie power system that you need.
2. Choosing applicable solar panels for Sunshine Grid Tie Inverter.
3. Selecting accessory for installation of the Grid Tie Power System .
4. Selecting correct model of Sunshine Grid Tie Inverter.
5. Installing solar panels to suitable place.
6. Installing Sunshine Grid Tie Inverter to suitable place.

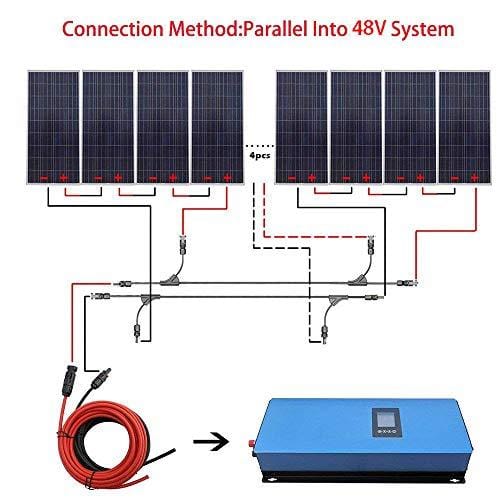

7. Connecting Sunshine Grid Tie Power System with cables and connectors.
8. Grounding the system.
9. Completing Sunshine installation map and Connecting the PV modules.

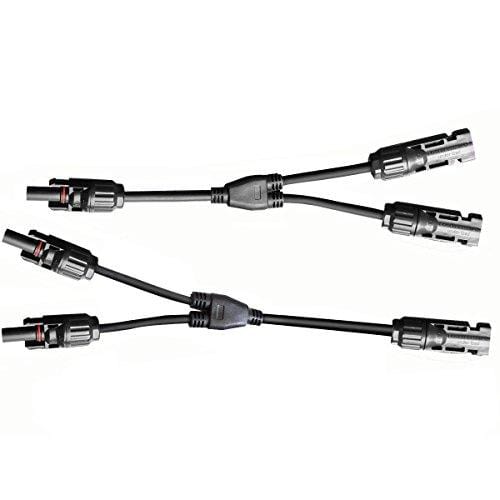

Package include:12pcs 150W Poly Solar Panel+1pcs 2000W Grid Tie Power Inverter+1 pair 5m solar cable+2 pairs Y MC4 connectors

UPC: 787542214552

EAN: 0787542214552
