Brand: ECO-WORTHY

Features:

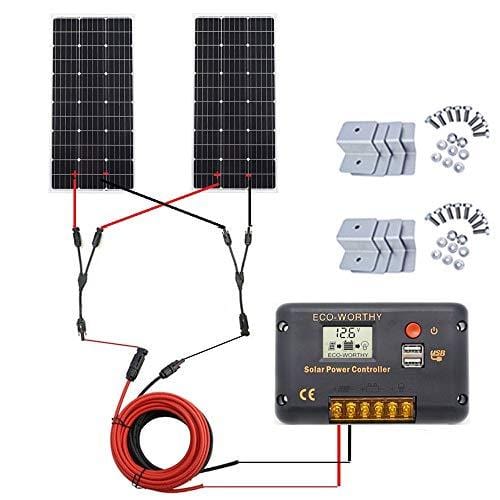

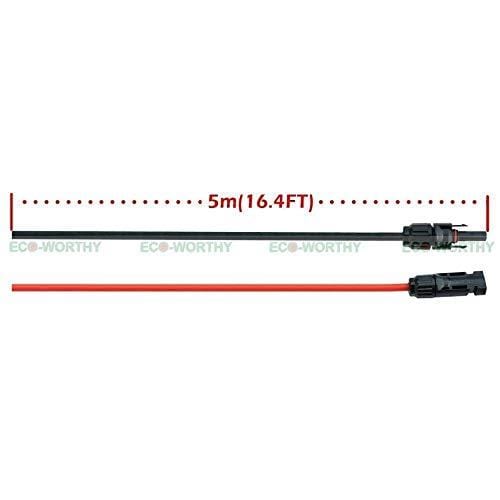

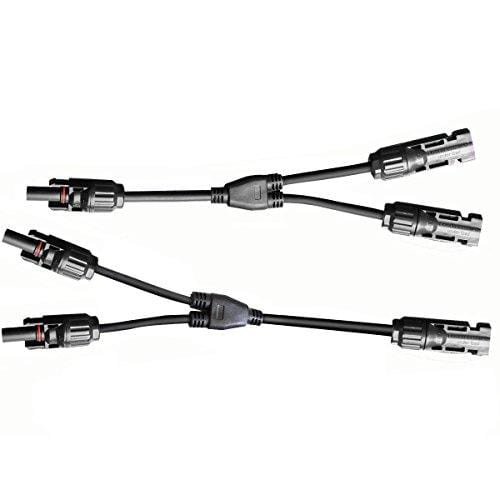

• This kit includes 2 pcs 100W mono solar panel, 1 pair of 5m(16.4') 4mm² solar cables, 2 sets Z style mounting brackets, 1 pc 20A CMG Solar Controller and 1 pair of Y branch
• This 100W Mono solar panel with its high power output and the robust design the right solution for a stand-alone system.
• 20A charger with build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
• Connect order please connect 12v/24v battery with controller first, it will automatically to 12v/24v depends on battery voltage.

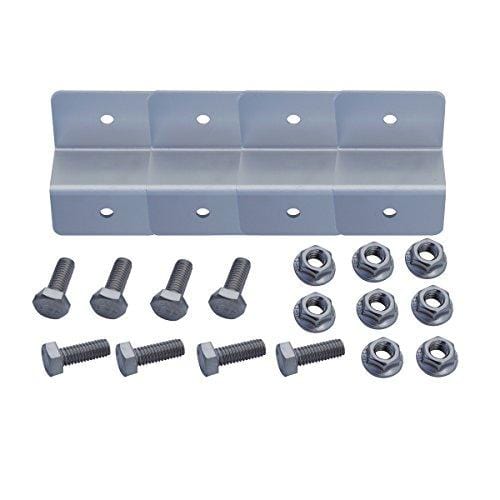

• Z shape surface mount brackets, allowing sufficient air space for cooling solar panel.

Publisher: ECO-WORTHY

Details: Solar Panel kit Specification

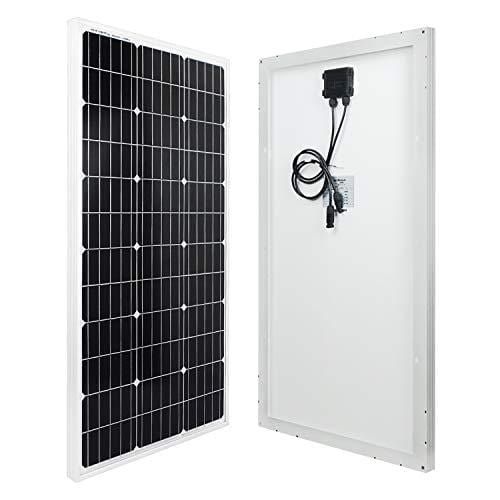

Type：100W Mono Panel
Rated power：100W
Maximum/Peak Voltage(Vmp)：18V
Open Circuit Voltage(Voc)：22.41V
Maximum/Peak Current(Imp)：5.56A
Short circuit current (Isc)：6.67A
Output Tolerance：±3%
Temperate coefficient of Isc：(010+/- 0.01 ) %/℃
Temperate coefficient of Voc：- (0.38 +/-0.01 ) %/℃
Temperate coefficient of power Voc：-0.47%/℃
Temperature range：-40℃to +80℃
Frame：Heavy duty aluminum
Kind of glass and its thickness：Low Iron, high transparency tempered glass of 3.2mm

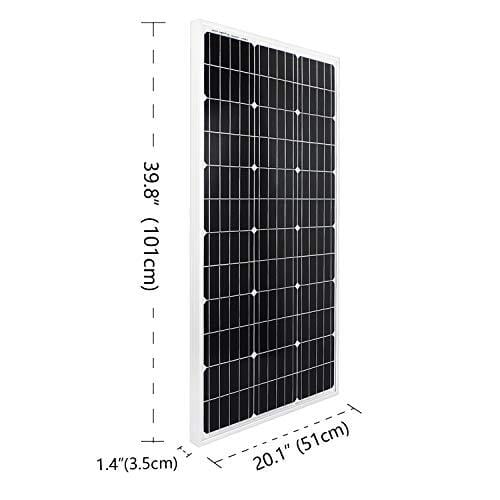

Size:39.8x20.1x1.4 in(1010mm*510mm*35mm)
weight:18.96lbs(8.6kg)

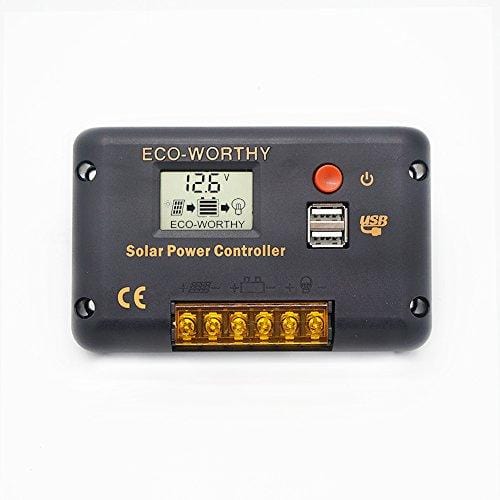

20A Solar Charge Controller
Battery voltage :12V/24V auto
Charge current :20A
Discharge current :20A
Max Solar input :<50V
Charge voltage :13.7V
Discharge stop :10.7V
Discharge reconnect :12.6V
USB output :5V/2A
Self-consume : <15mA
Operating temperature :-20~+60 ℃
Size/Weight :138*85*30mm /150g
Install hole size :124*50mm
