Brand: podofo

Color: Car Backup Camera Kit

Features:

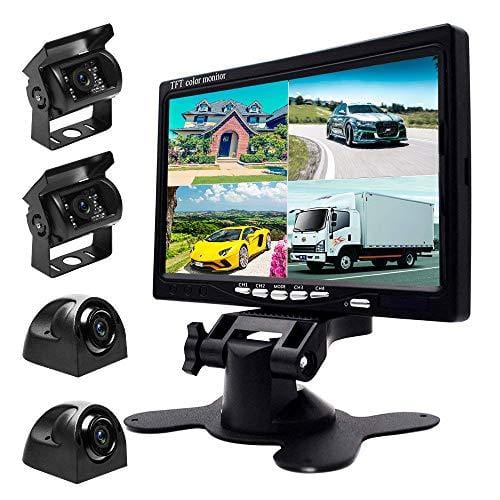

• Professional Wired Vehicle Back Up Camera System: Rear View Monitor built-in Quad View Control Box. Four cameras can be viewed simultaneously from the Front Rear Side views in one display, defend your driving safety.

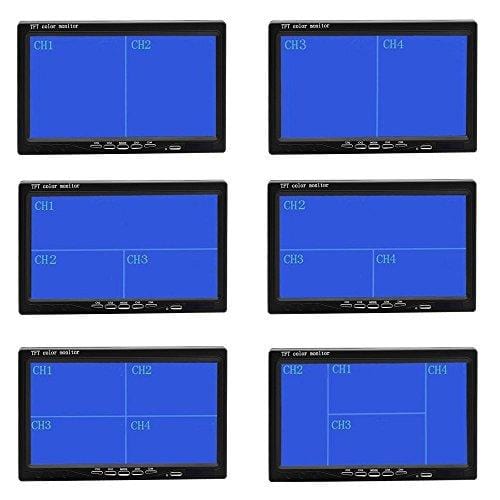

• 7 Inch Color TFT LCD Split Monitor : High resolution, clear image; 4 Channel input; 4 split video displays--4 in 1, 3 in 1, 2 in 1 or full view. You can see 4 directions scenery outside the car, and the image auto switch to AV1 when reversing.
• Full-Time Rearview Cameras: Included 2 x Side View Camera and 1 x Front View Camera, for normal viewing and NO GUIDE LINE; 1 x Car Rear View Camera for mirror viewing and with Distance Scale Lines. Waterproof and Shockproof, full set of panoramic security system.

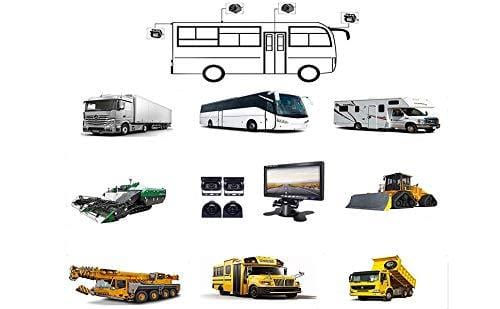

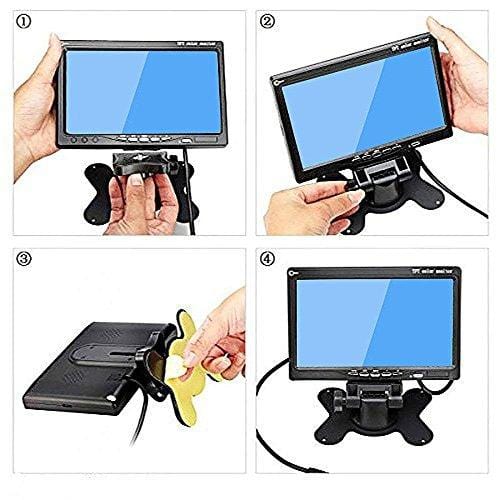

• Flexible & Easy to Use: Monitor with dashboard stand and windshield mount; The wiring provides a more stable signal and much longer life. Fit most of large vehicles-- pickup, bus, truck, RV, trailer, Van, Camper, motorhome, etc.
• Reliable & Friendly Customer Service: 30-day Money-Back Guarantee; 12-month Replacement Warranty; Tech Support: Podofo@126.com.

Publisher: podofo

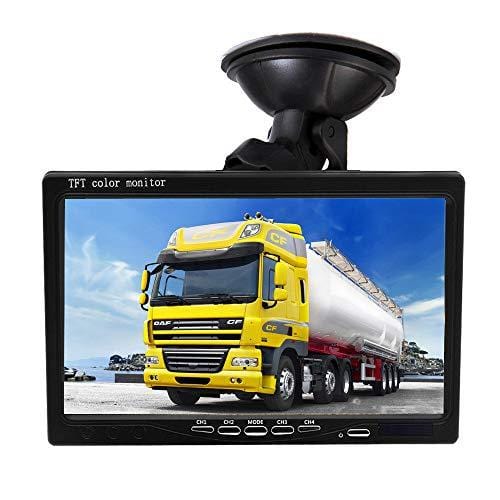

Details: 7" Color TFT LCD Monitor:
- Image can be switched left and right, up and down.
-Panoramic driving security system. You can see 4 direction scenery on a display outside the car.
-4 Channels input: V1/V2/V3/V4 - Screen Size: 7 inch * Housing Material: ABS
* Resolution: 800 x 480 RGB
*Contrast：300 : 1
*Display Mode: 16 : 9
*Power Supply: DC 9-36V
*Video Frequency: PAL / NTSC
*Operation Temperature: -20 ~ 60 degrees

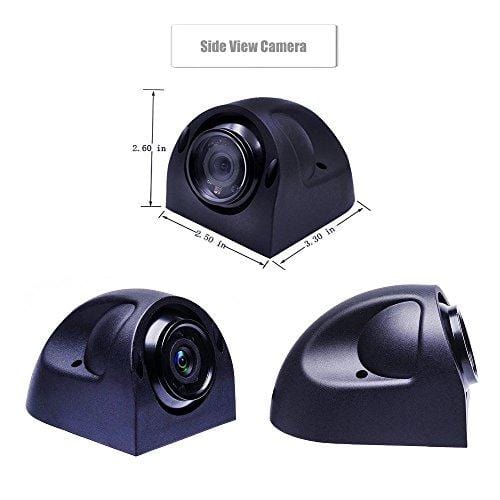

Car Side View Camera:
Normal viewing and NO GUIDE LINE
*Chip: Color 1/4 Sharp CMOS
*Format: PAL / NTSC
*Resolution: PAL: 500 (H) x582 (V) / NTSC: 510 (H) x492 (V)
*Horizontal: 420TV Lines
*Night vision distance: 10M
*SNR: more than 48dB (AGC OFF)
*Operating temperature: -10 ° c to +50 ° c RH95 ‰ Max
*Storage temperature: -25 ° c to +60 ° c RH95 ‰ Max
*White Balance: Auto
*Power supply: DC 9V-36V

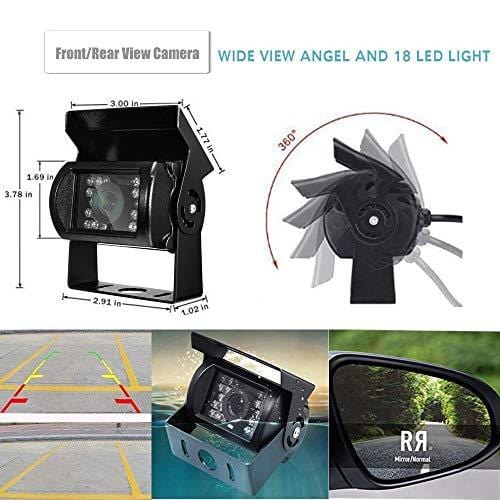

Front /Rear View Camera
Front Camera for normal viewing and NO GUIDE LINE
Rear Camera for mirror viewing and with Guide Line
-Auto IR Cut Night Vision: Built-in 18 IR LED lights, good performance in day and night.
-Automatically switches to IR when light level is low. Night visible range to 30 ft.
-IP68 Waterproof: High strength weatherproof lens
*Image Sensor: CMOS 7030 HD Senso
r *TV System: NTSC/PAL
* Resolution 420 TV lines
*Video Output: RCA connector,1.0vp-p 75OHM
*S/N Ratio: Better than 48db
*Power Supply DC 9V -DC 24V
*Work Temperature: - 20°C ~ +60°C
*White Balance: Auto Tracing

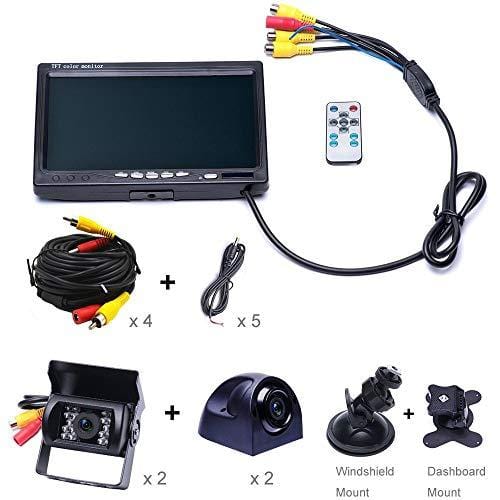

Package Contains:

1 x Quad Split Monitor
2 x Side View Camera
2 x Rear View Camera
4 x Video cable
5 x Power Cable
1 x Suction Cup Mount
1 x Dashboard Stand
1 x IR Remote Control

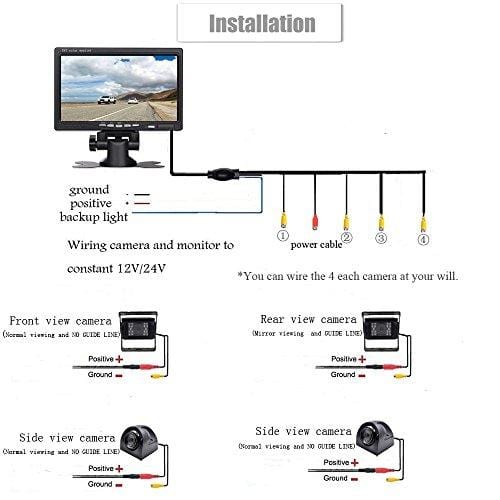

1 x Installation Instructions

Package Dimensions: 10.0 x 8.0 x 6.0 inches
