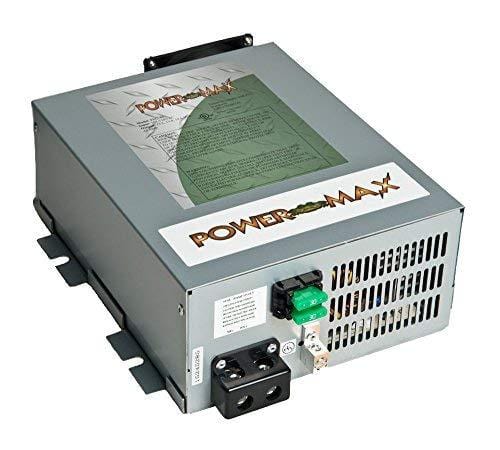

Brand: PowerMax

Features:

• Great replacement for OEM RV, trailer, camper, motorhome, etc power converters
• Automatic three-stage battery charging maintains your battery's life with three nominal voltage output
• Convenient deck mount installation
• UL Approved

Publisher: PowerMax

Details: Features:

• Output Amperage, Max Continuous: 55 Amps
• Electronic current limiting automatically shuts down power during overload or short-circuit conditions.
• Automatic three-stage battery charging maintains your batterys life with three nominal voltage output
• 13.2 Vdc range "float" mode
• 13.6 Vdc range "absorption mode
• 14.4 Vdc range"bulk" mode
• Quiet operation in a wide range outputs.
• Convenient deck mount installation.
• UL Approved
• 2 Year Warranty

• DC Output Voltage (No Load): 13.6V approx. (DC)
• Output Voltage Tolerance (no + or - Load): .7%
• Output Voltage (Full Load): >13.4V approx. (DC)
• Maximum Power Output, Continuous: 780 Watts
• Input Voltage Range: 105-135 AC
• Input Voltage Frequency: 47-63
• Maximum AC Current @ 12 Amps: 108VAC
• Typical Efficency: >85%
• Max Inrush Current Single Cycle: 40 Amps
• Short Circuit Protection: Yes
• Overload Protection: >100%
• Line Regulation: 100mV rms
• Load Regulation: <1.0%
• Fan Control: Proportional
• Thermal Protection: Yes
• Working Temp Range: 0-45C
• Storage Temp: -20 to 80C
• Withstand Voltage: 1240V @ leads
• Dimensions: L:7.15in x W:10.5in x H:3.45in
• Weight: 5.0lbs

UPC: 852877007688

EAN: 0852877007688

Package Dimensions: 13.0 x 9.6 x 5.3 inches
