Brand: Titan

Features:

• DESIGN FOR VENT & GRILLE MOUNTING VENTILATION- Great for refrigerator vent & grille ventilation in your motorhome, camper van, camper truck, caravan or any cabinets.

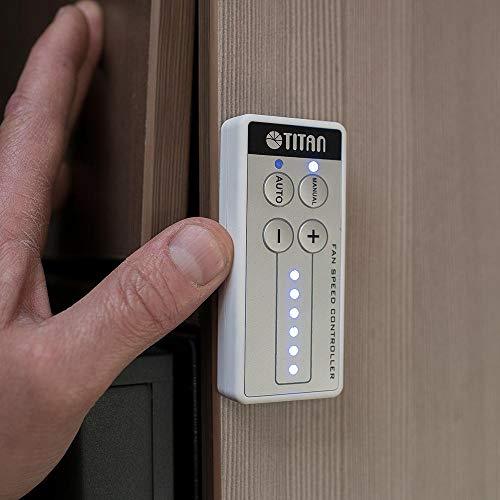

• FLEXIBLE AND SMART SPEED CONTROL MODE- Auto Temperature Control/ 6-levels manual controller to adjust for particular needs

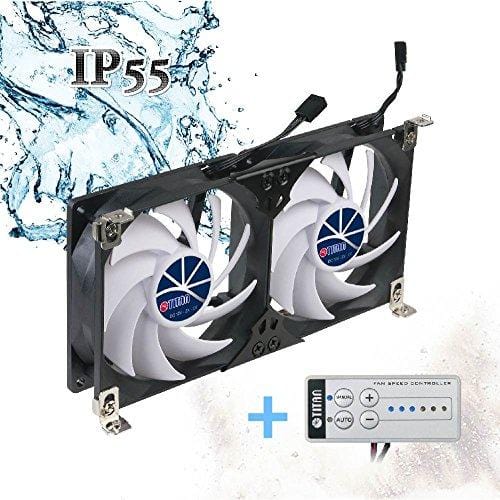

• ALL WEATHER ACCEPTABLE- IP 55 Waterproof &dustproof fan, perfect for outdoor use
• SILENT OPERATION- Take TITAN professional 9-blades kukri silent fan, this multi-purpose fan or fridge vent fan provides you the quietest operation experience without being disturbed.

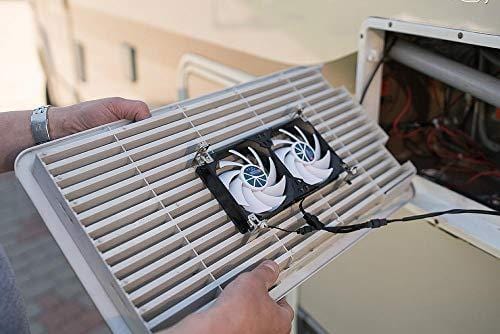

• EASY INSTALLATION- Rack hook design for easy install on refrigerator vent

Publisher: TITAN Technology

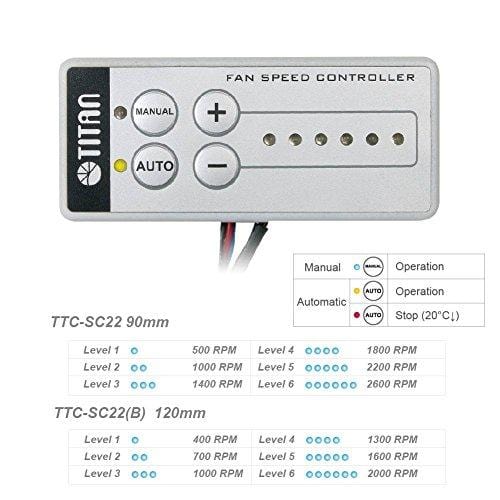

Details: NOTICE: In the auto mode, the indication of operating is green. If your surrounding temperature (depend on the sensor) is under 20°C, the light shows "red" and the fan would stop working. After the temperature is above 20°C, the fan would operate again. It's normal. Please do not worry.

-WARNING: Do not attempt to revise polarity to change the airflow direction. It would not revise the airflow direction.
The airflow would blow out from the side of fan with cross grille.
If you revise the polarity (positive to negative), the fan and controller would not work.
Please connect the cable to the same polarity (positive to positive/ negative to negative)
SPECIFICATION
TTC-SC22 -90mm
Outline Dimension: 184 x 92 x 30 mm
Fan Dimension: 92 x 92 x 25 mm
Rated Voltage: 12V DC
Rated Current: 0.48 A
Power Consumption: 5.76 W
Rated Speed: 500~2600 RPM
Airflow: 106 CFM
Static Pressure: 0.12 Inch H₂O
Noise Level: 28 dBA
Bearing Type: Two ball
Life Time: 50,000 Hours

TTC-SC22(B) -120mm
Outline Dimension:240x 120 x 30 mm
Fan Dimension: 120 x 120 x 25 mm
Rated Voltage: 12V DC
Rated Current: 0.56 A
Power Consumption: 6.72 W
Rated Speed: 2000 RPM
Airflow: 121.13 CFM
Static Pressure: 0.12 Inch H₂O
Noise Level: < 32.9 dBA
Connector: 3-PIN
Bearing Type: Two ball
Life Time: 50,000 Hours

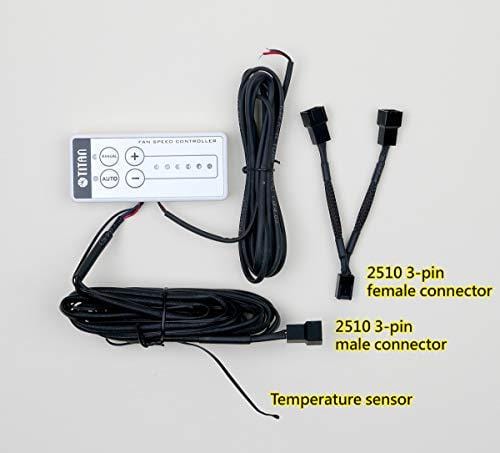

SPEED CONTROLLER
Outline Dimension: 85 x 37x 15.5mm
Input Voltage: 12V DC
Output Voltage: 7~13.8V DC
Max Output Current: 1A
Temperature Measuring: 20°C~ 45°C (500~2600RPM)

The refrigerator should be installed on or close to the cooling fins of the refrigerator.

EAN: 4260153572090

Package Dimensions: 15.4 x 6.7 x 1.7 inches
