Brand: Mounting Dream

Color: Black

Features:

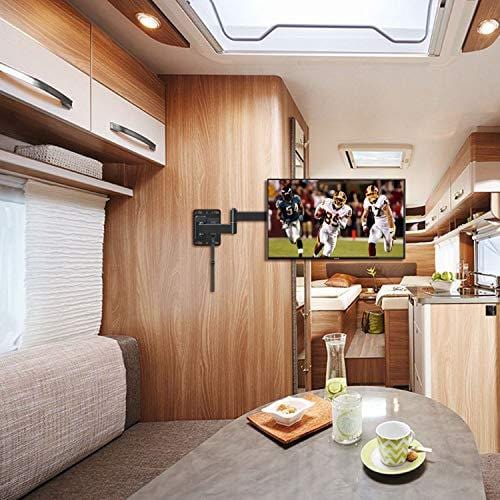

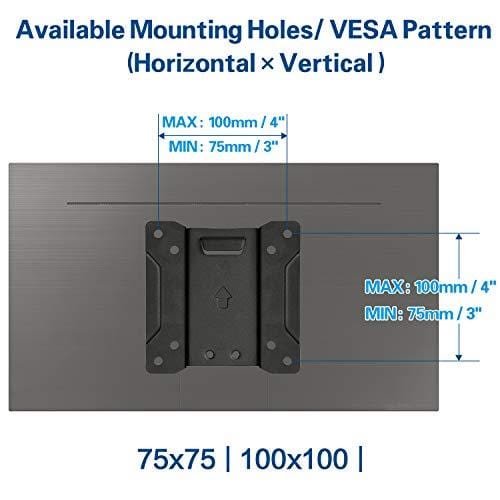

• UNIQUE DESIGN: RV TV Mount for Motor Home/ Camper/ Truck/ Marine Boat-- TV mount fits TV size for 10-26 inches and supports TV up to 22 lbs. weight with VESA/mounting holes spacing of 75x75mm, 100 x 100mm. Not perfect? You can check Mounting Dream MD2210 RV mounts for best options.

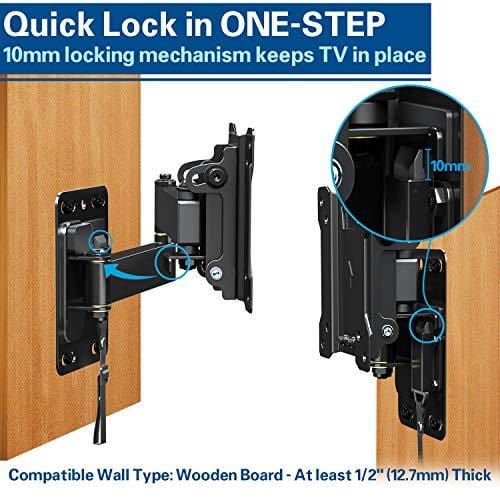

• EASY ONE STEP LOCK MECHANISM: TV mount with unique locking mechanism with 10mm tongue secures swivel arms and TV plate at one time when vehicle in motion to prevent any bumps. One step locking system helps you better release and lock the TV in place securely with the pulling strap.

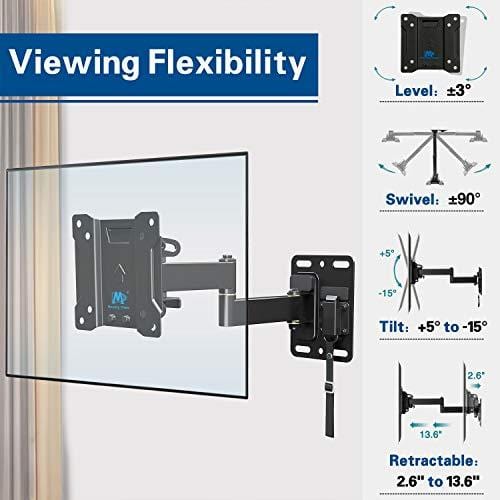

• UPGRADE VIEWING EXPERIENCE: RV bracket providing more enjoyable viewing angles, has a tilting angle from +5° to -15°, and swivels up to -/+90° on each side. To help better level the TV, provides up to -/+3° for level management.

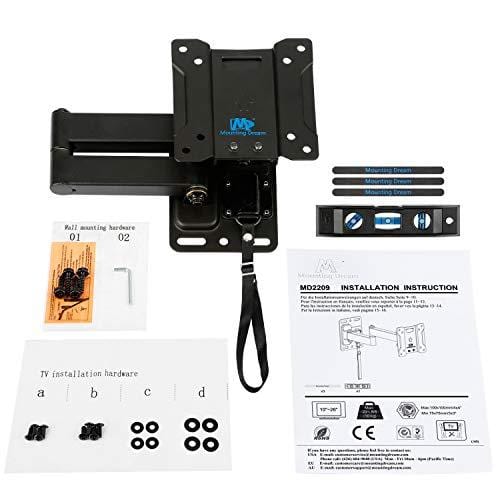

• EASY INSTALLATION: RV TV wall mount with decent instruction and all included hardware in pre-labeled bags. The wooden board in vehicle should be thicker than 1/2 inch. Pull out to 13.6"/346mm and retract back to 2.6"/68mm, making your TV flexible to move.
• THOUGHTFUL US BASED CUSTOMER SUPPORT: We are glad to answers your pre-purchase and installation questions. Our RV TV mount is 10-year warranted!

Publisher: Mounting Dream

Release Date: 2019-03-28

Warranty: 10-year warranted

Details: Fits Most 10'' to 26'' TV Mounting Dream RV TV mount MD2209 fits most TV size from 10'' to 26'' and RV mount supports TV up to 22 lbs. weight, having VESA pattern 75x75mm and 100x100mm. Not sure, we are willing to help you check when sending mail to us by providing TV model name. Easy One-step Locking Mechanism This RV TV wall bracket has been upgraded the length of the locking system, just pull down the strap and push the TV back in place, after hearing a sound of ""click"", the TV is locked securely in the wall. Such steps would be read in the instruction. And for any locking concern, just contact us by mail! Multiple Viewing Angle RV mount has a tilting angle from +5° to -15°, and swiveling up to -/+90° on each side, as well as up to -/+3° for level management. Also, to help you better adjust the angle, it is able to extend 346mm/ 13. 6'' and retracts 68mm/ 2. 6'' from the wall. Installation Notes Please check the thickness of the wooden board, we suggest that it should be 0. 5"(12. 7mm) thick or above, because the lag bolts we provided are M6x25mm which has been calculated based on the wooden board. Please be kindly note that the TV plate is off center about 0. 63""/16mm to the wall plate. Related description can be seen in the images. Quick Installation with Gifts RV TV wall mount comes with enough hardware for the installation, following the instruction step by step. For better service, we provide three cable ties and a bubble level for management. And just a friendly reminder that we do not allow to use any electronic tools to finish the installation except for drilling pilot holes on the consideration of safety.

EAN: 6920138104361

Package Dimensions: 10.2 x 7.1 x 3.0 inches
