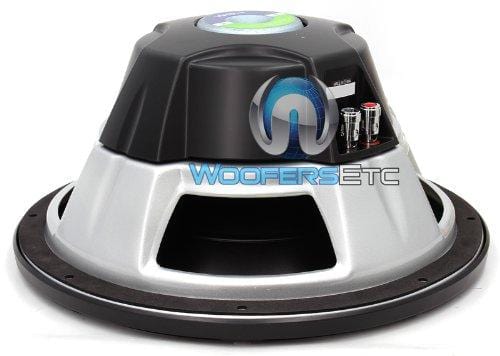

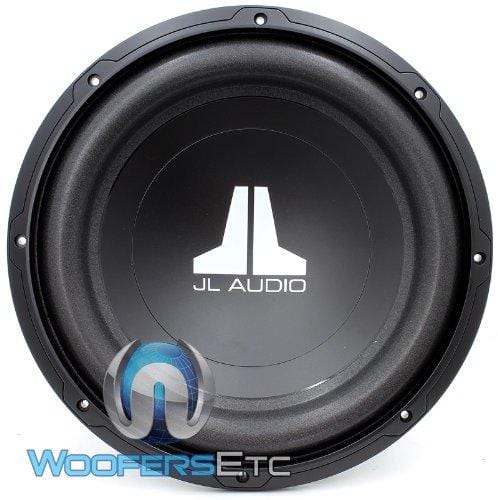

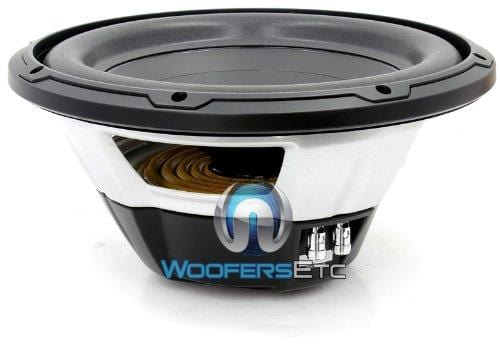

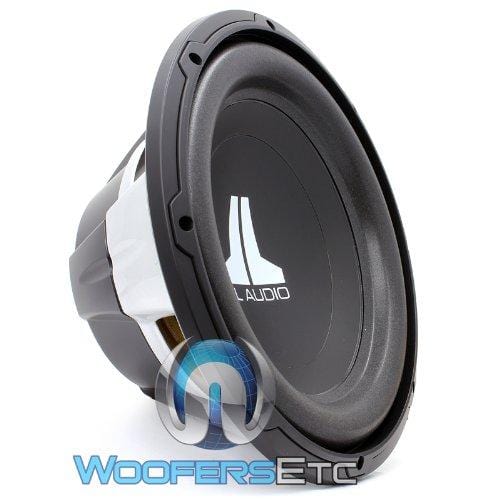

12W0V3-4 - JL Audio 12" Single 4-Ohm W0V3 Series Subwoofer

Product Description


Color: BLACK


  • 12W0V3-4 - JL Audio 12" Single 4-Ohm W0V3 Series Subwoofer
  • Mineral-filled, polypropylene cone woofer for excellent durability
  • Large roll surround for generous amounts of excursion
  • Elevated frame cooling brings air directly to the voice coil
  • Designed for compact sealed enclosures or medium-sized ported enclosures

Publisher: JL Audio

Details: JL Audio 12W0V3-4 12" 4 Ohm Subwoofer
Impedance: 4 ohms
Patented Elevated Frame Cooling
Most Real Excursion In its class
Highly Linea, DMA Optimized Motor System
Designed for use in compact sealed or medium-size ported enclosures
Lead-wire system woven into spider
Metallic silver frame finish
Mineral-Filled Polypropylene Cone
Peak Power Handling: 600 Watts
RMS Power Handling: 300 Watts
Nitrile Butadiene Rubber Material
Thermal Power Handling Output: 300 Watt
Free Air Resonance (Fs): 28.43 Hz
DC Resistance (Re): 4.280 ohm
Sensitivity: 85.64 dB
Electrical "Q" (Qes): 0.715
Mechanical "Q" (Qms): 10.709
Total Speaker "Q" (Qts): 0.670
Driver Displacement: 0.048 cu. ft.
Equivalent Compliance (Vas): 2.530 cu. ft.
Xmax Linear Excursion: 0.45''
Reference Efficiency (no): 0.221%
Efficiency (1W/1m): 5.64 dB SPL
Effective Piston Area (Sd): 74.509 sq. in.
Net Weight: 8.11 lbs

UPC: 699440921664

EAN: 899440921668

Package Dimensions: 13.9 x 13.7 x 7.6 inches

$ 126.99
