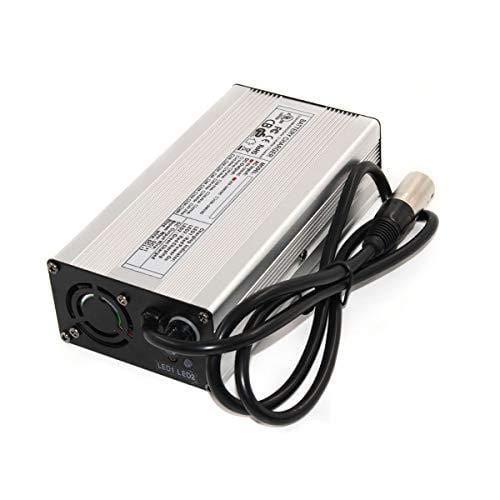

54.6V 4A Charger Electric Bike Charger 48V Li-ion Battery Charger 48V Charger 48V Scooter/E-Bike/Boat/Motorcycle Battery Charger 48V for Ezgo Battery Charger (54.6V4A XLR)

Brand: YALANCHA

Features:

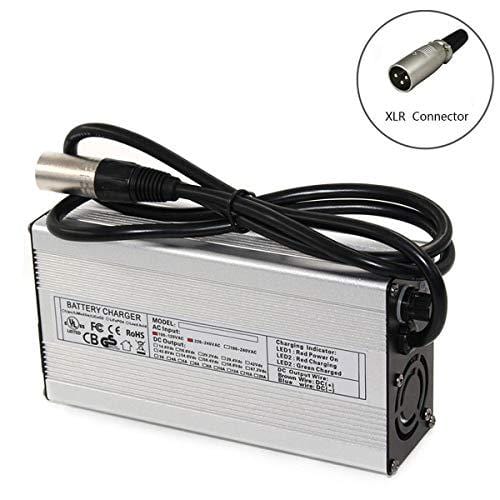

• Output: 54.6V 4A; Input:90 -230Vac, 50 ~ 60Hz，The plug is as shown in picture 1

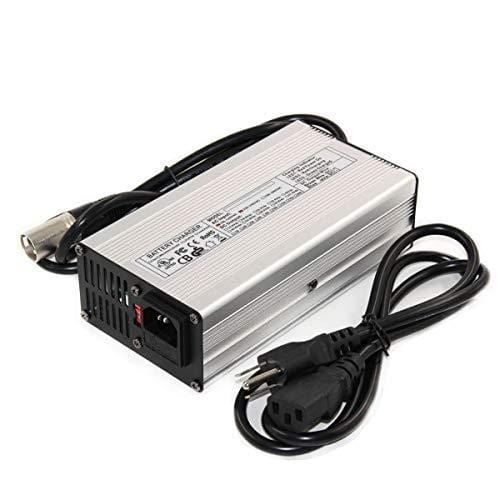

• Provide 1* Fuse and 1* US standard power cable
• Aluminum Shell,LED Indicator light,Beautiful and Durable
• Aluminum Shell, Durable and cooling faster
• Over voltage Protection, Over Current Protection, Short Circuit Protection, Reverse Protection

Publisher: Dongguan yalan electronic technology co. LTD

Details:

Specification:

Model: YL240

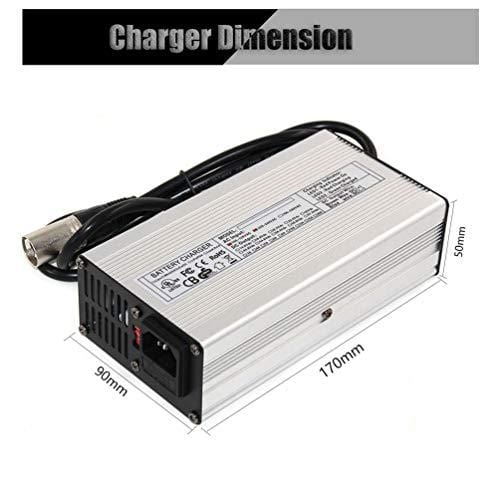

Dimensions: 170x90x50mm

Battery type: Li-ion battery

Working power: 90-230Vac, 50 ~ 60Hz

Suitable for Battery Voltage: 48V

Output voltage: 54.6V (For 13S Li-ion Battery)

Output current: 4A

battery Protection: SCP,OVP,OCP,OTP

Charging mode: constant current - Constant Voltage - trickle (floating charge) three-stage intelligent charging

Charging efficiency: ≥85% (full load)

Working temperature: -5 ℃ ~ +40 ℃

Storage temperature: -40 ℃ ~ +70 ℃

AC power cord, DC connector can be customized.

Operating Instruction

1. Before charging, please connect the DC terminal to battery first, and then connect the AC terminal.

2. After charging complete, unplug the AC terminal firstly, and then unplug the DC terminal.

3. No charging or after charging complete, be sure to unplug the DC terminal and AC terminal.

LED Indicator:

LED 1 red: Power on.

LED 2 red: Battery being charged.

LED 2 Flash: Battery will be charged completely soon.

LED 2 green: Battery has been charged completely.

Package:

1* 54.6V 4A charger

1* US standard power cable

1* Operating manual

1* Fuse for replacing

UPC: 631089483837

EAN: 0631089483837

Package Dimensions: 11.7 x 7.2 x 2.8 inches
