Driver Recovery Products Bumper Hitch Receiver Winch Mount Mounting Plate

Brand: Driver Recovery Products

Features:

• Made of 3/16" high strength steel
• Standard 10" x 4-1/2" winch mount pattern
• Ideal for 8000 lbs to 13,000 lbs winches
• Standard 10" on center fairlead bolt pattern
• Anti-rust powder coat finish

Publisher: Driver Recovery Products

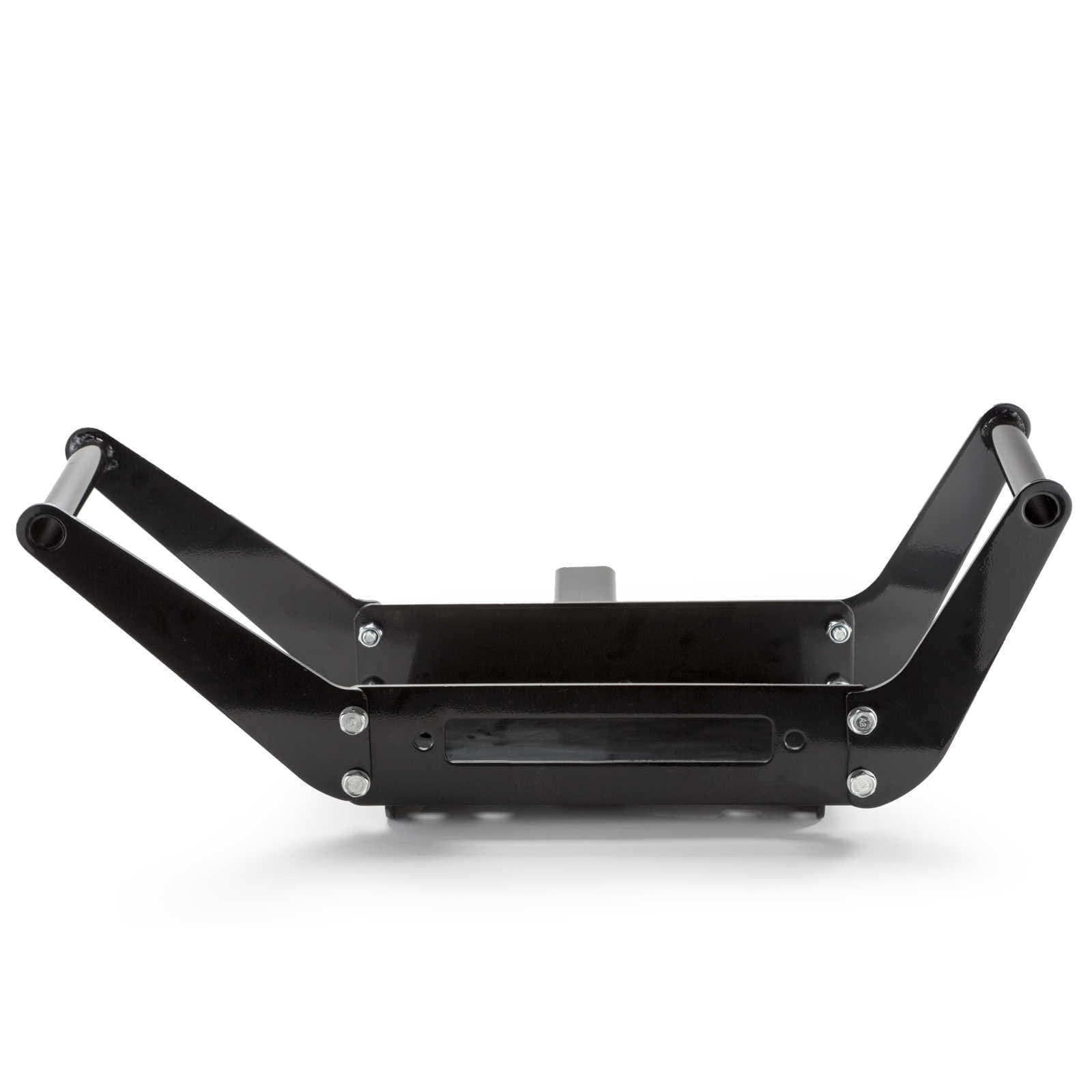

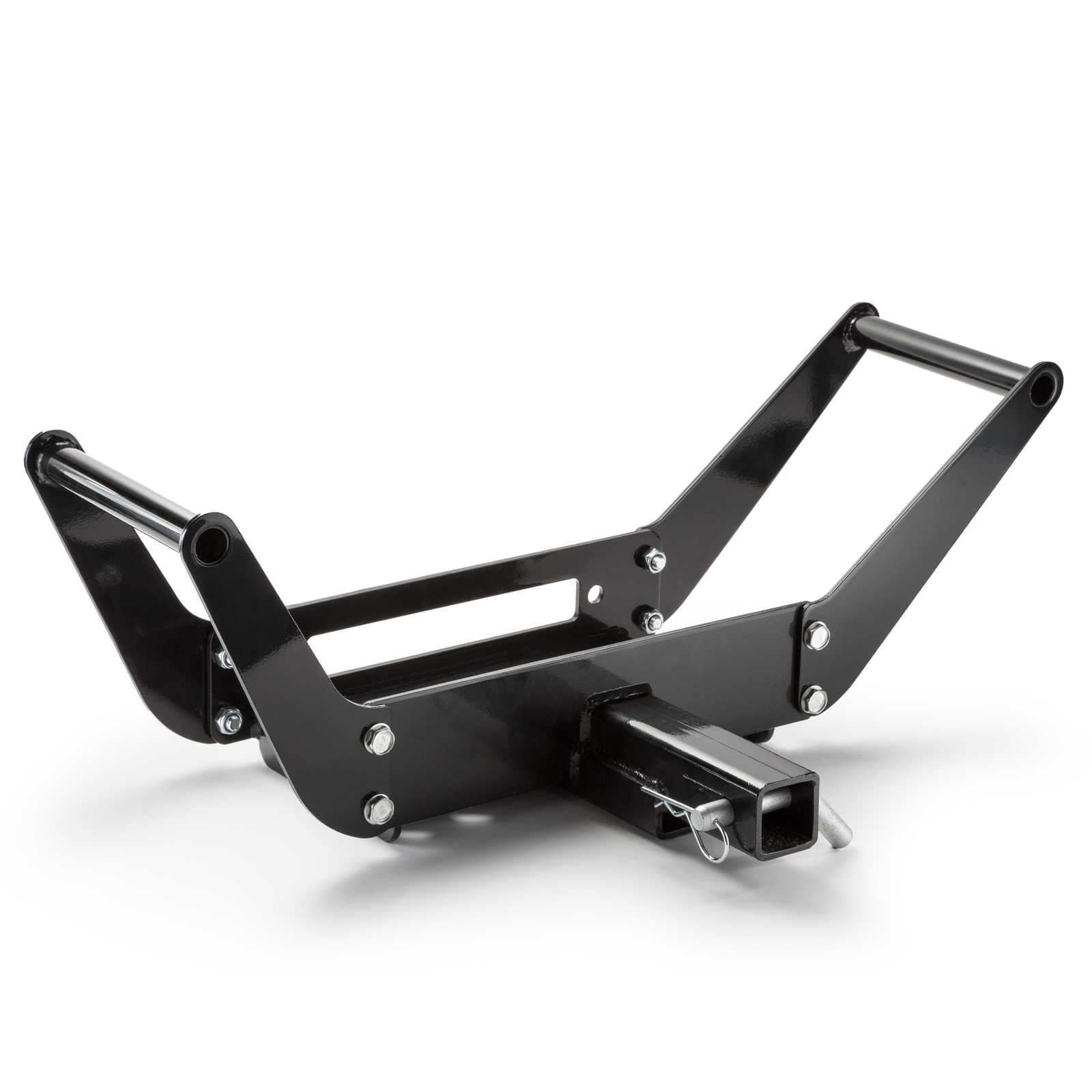

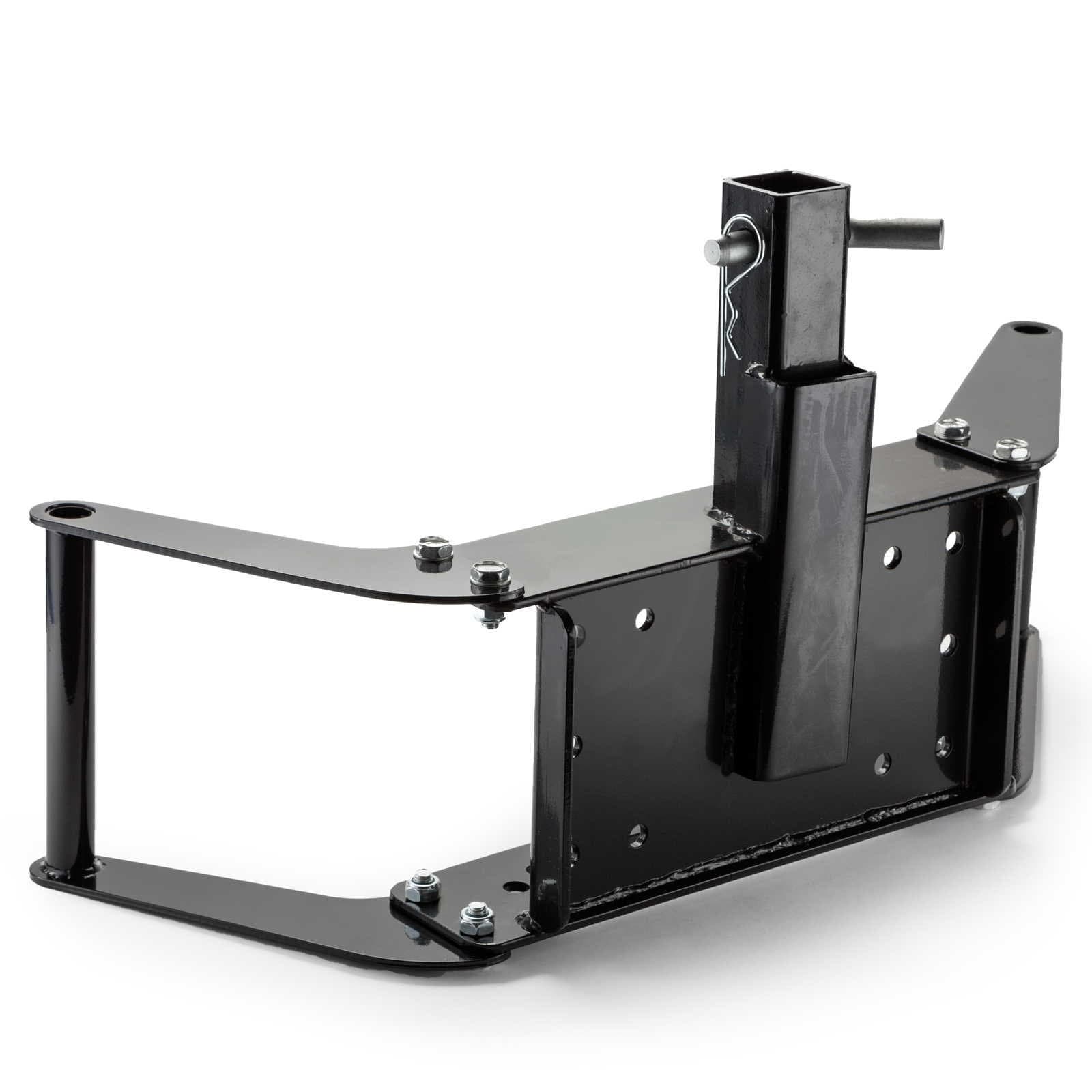

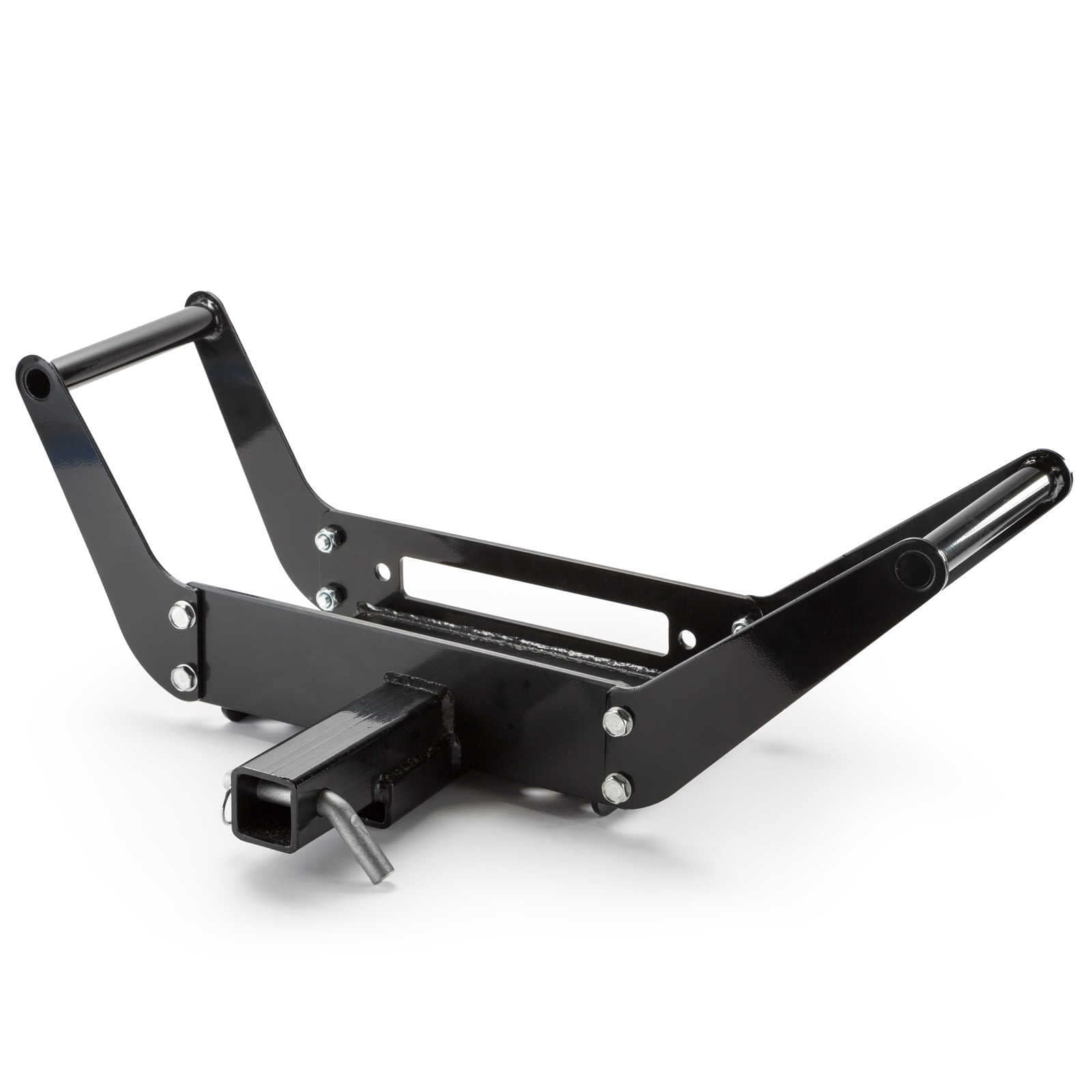

Details: Premium hitch receiver mounting plate for winches from Driver Recovery Products. Super-duty construction; fabricated from a single piece of ultra-high tensile strength, 3/16" steel plate. Mount is coated with an epoxy grade finish which is significantly less likely to chip and rust than powder coated models. Mounting channel is drilled with two bolt patterns allowing for custom mounting applications and compatibility with most every winch brand; a standard 10" x 4-1/2" pattern, and a 6-1/2" x 4-1/2" pattern. Two removable side guards protect your winch motor and double as handles, allowing for convenient winch removal/installation. The front of the mount is pre-drilled for a standard 10" hawse or roller fairlead (mounting holes are 10" on center and mouth opening is 8-13/16" x 1-1/4"). Fairlead opening is centered to bolt patterns for perfect fairlead alignment. The mounting plate area measures 14-5/8" long, 7" deep and 4" tall. Distance between side guards when installed: 25-1/2". Handle length: 7-1/8". Shank for standard 2" receiver tube measures 6-3/4" from rear edge of plate to end and includes hitch pin. Pack of mounting hardware included.

UPC: 609728831448

EAN: 609728831448

Package Dimensions: 17.5 x 16.5 x 6.0 inches
