Brand: ECO-WORTHY

Color: 100W Solar Panel Kit

Features:

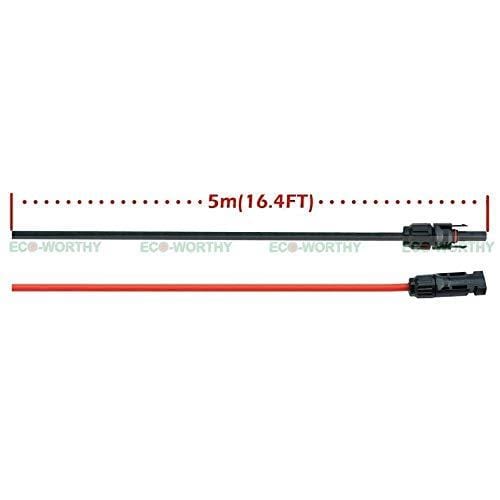

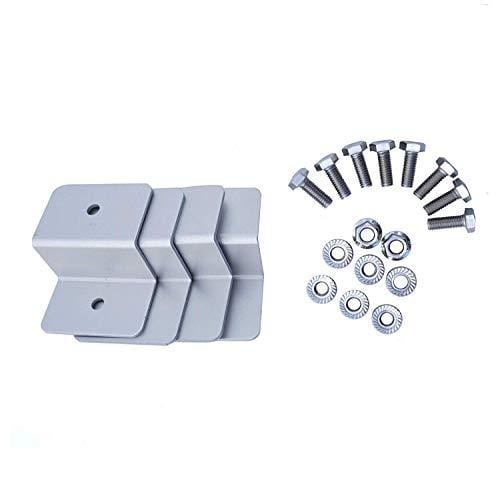

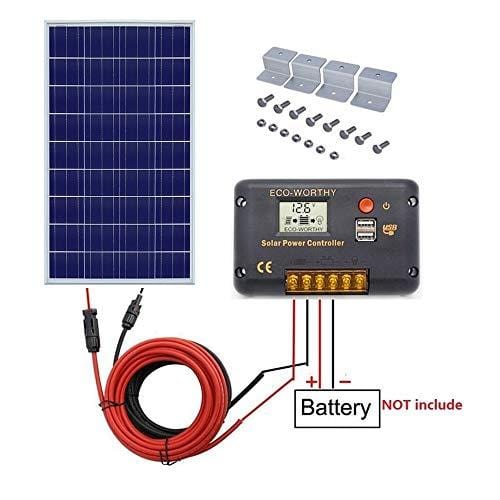

• Comes with a 100W 12V solar panel, a 20A PWM LCD charge controller, a pair of 16ft mc4 connector cables and a set of Z brackets.
• Designed specifically for solar panel system starter. Easy and convenient to install with pre-drilled holes on panel and Z brackets for fast mounting and securing.
• PWM Solar Charge Controller with LCD Screen shows, battery voltage,ECO-WORTHY logo, dual USB ports
• Perfect for off-grid applications, such as RVs, trailers, boats, homes,sheds, cabins,back-up and remote power use
• Ideal output: 500Wh per day of clean, free, renewable power(depending on the availability of sunlight).

Publisher: ECO-WORTHY

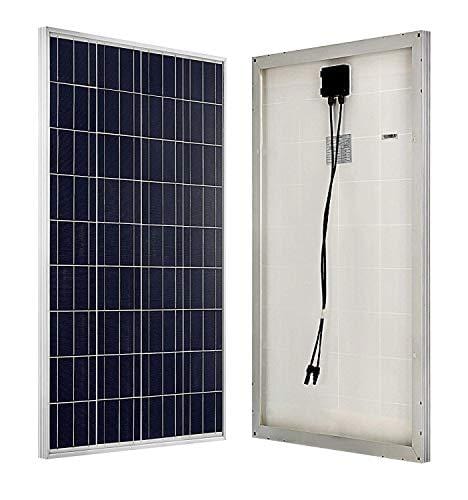

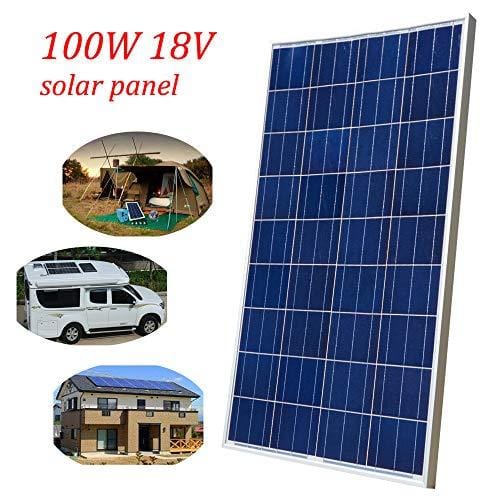

Details: 100W Poly Solar Pane Specifications:
Related power: 100W
Voc: 20.6V
Vop: 17.3V
Short circuit current (Isc): 6.88A
Working current (Iop): 5.79A
Output Tolerance: ±%
Temperate coefficient of Isc: (0.10+/- 0.01)%/℃
Temperate coefficient of Voc: - (0.38 +/-0.01)%/℃
Temperate coefficient of power Voc: -0.47%/℃
Temperature range: -40℃~+80℃
Frame: Heavy duty aluminum
Kind of glass and its thickness: Low Iron, high transparency tempered glass of 3.2mm
SLA Battery Voltage: 12V
Size: 37.7*26.2*1.38in (957*665*35mm) Weight:19lbs(8.6kg)
Guarantee of power: 90% power output within 10 years, 80% within 25 years
Defective Warranty: 5 year warranty against material and workmanship

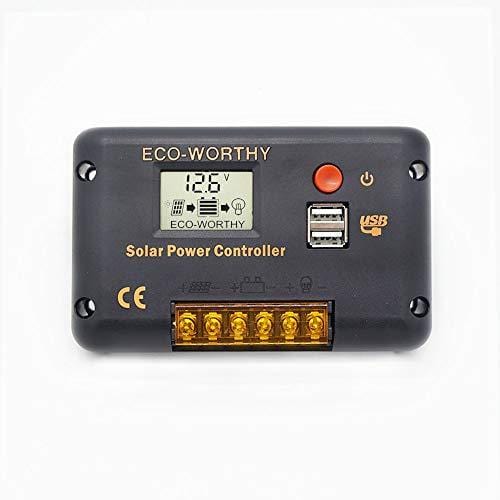

20A Solar Charge Controller
Battery voltage :12V/24V auto
Charge current :20A
Discharge current :20A
Max Solar input :<50V
Charge voltage :13.7V
Discharge stop :10.7V
Discharge reconnect :12.6V
USB output :5V/2A
Self-consume : <15mA
Operating temperature :-20~+60 ℃
Size/Weight :138*85*30mm /150g
Install hole size :124*50mm

Package Dimensions: 39.0 x 27.0 x 2.3 inches
