Brand: Pismire

Features:

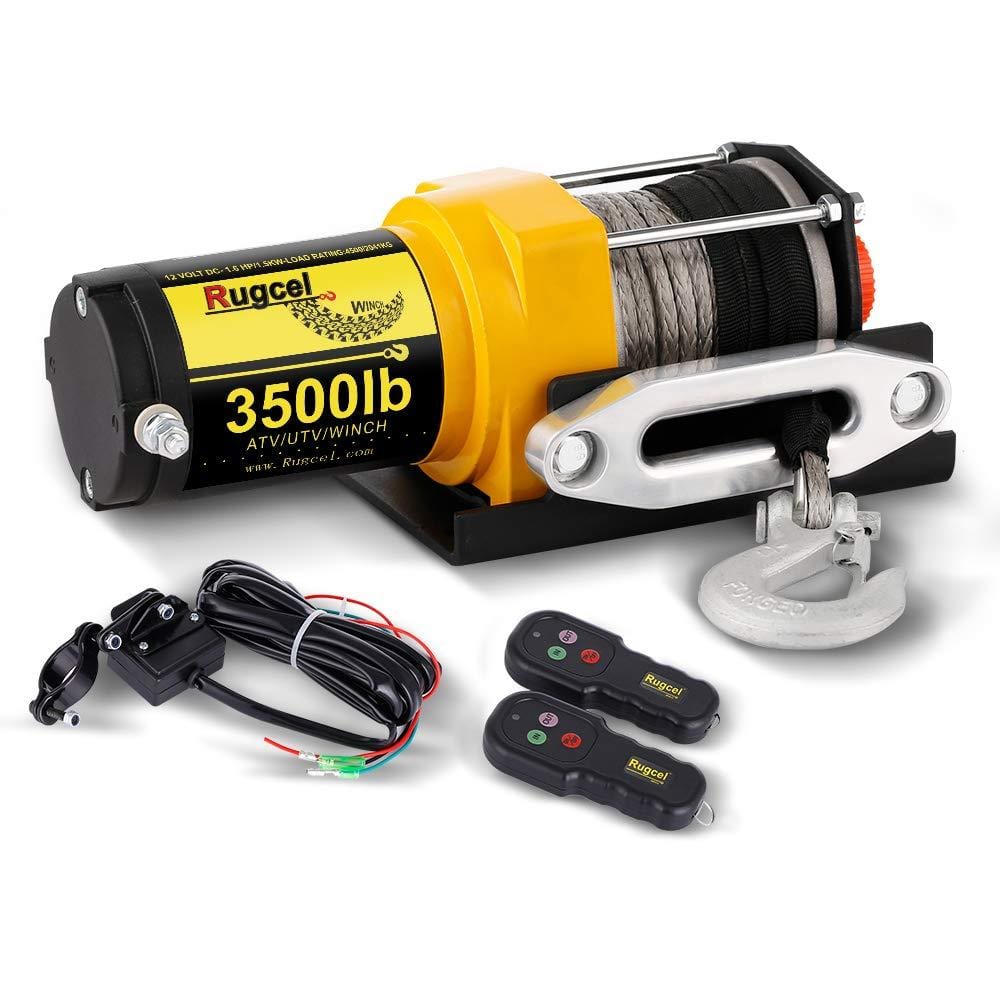

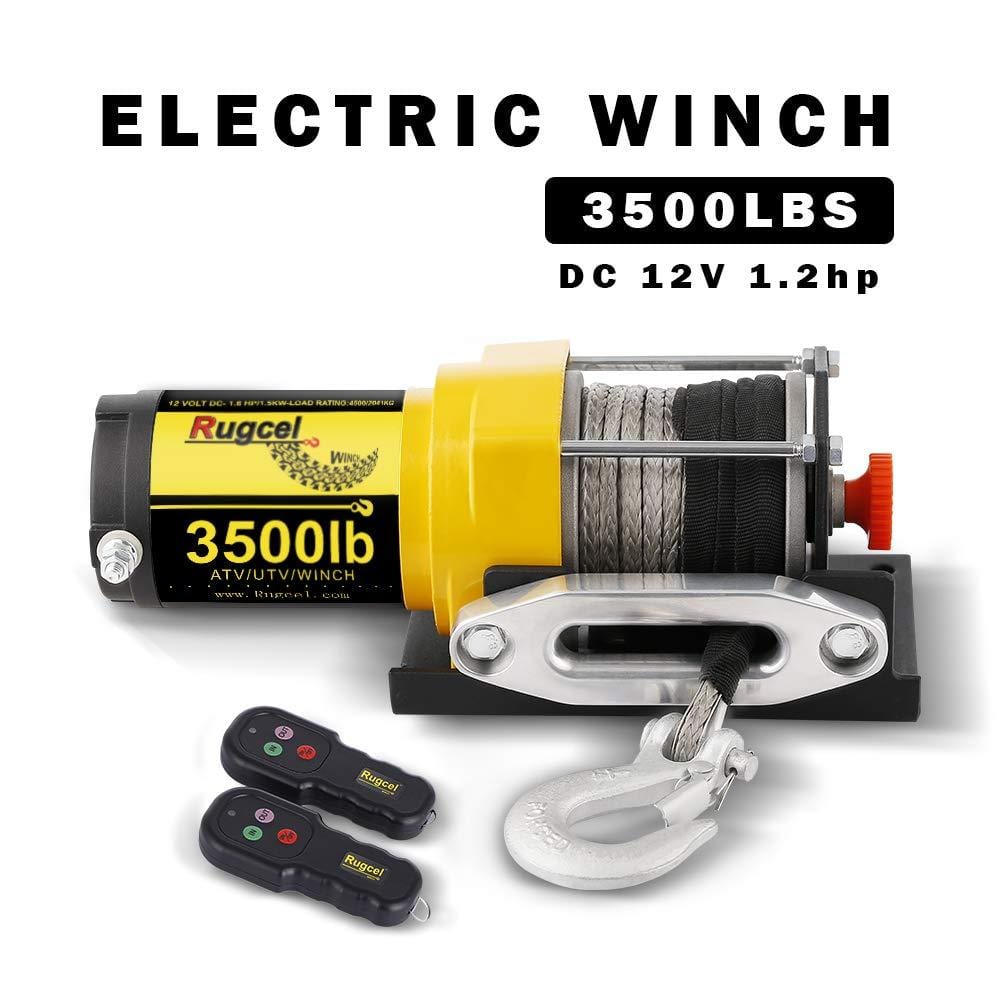

• Special designed for atv, uyv, car, boat, trucks, jeeps, modified vehicles and multi purpose utility trailers
• 1.2hp 12v series wound motor and three-stage planetary gear system with free spooling clutch,Steel Guidance Cable 3/16*48ft Nylon rope
• Completely waterproof, 3500 lbs rated capacity line pull for smooth and efficient operation
• Mechanical and dynamic brake for control while winching, including the detailed manual instruction
• All winches come backed by a lifetime technical support and 3-year limited warranty

Publisher: Pismire winch

Details:

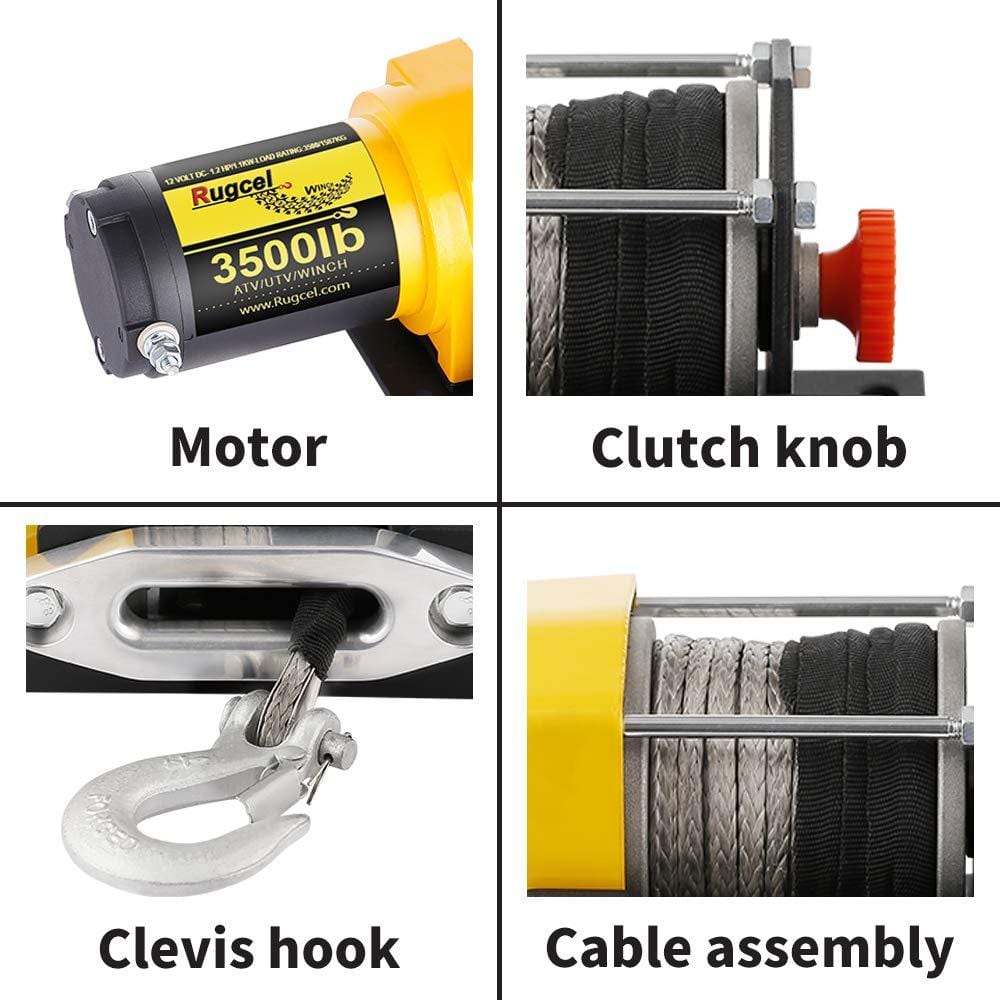

Product Features:
Motor Protection Function
Two-stage Planetary Gear System
Super Big Power
Power In & Power Out Motor for Positive Load Control
Automatic Load-Holding
Braker for Maximum Safely
High Tensile Synthetic Rope
Free Spooling Clutch for Fast Wire Rope Payout
Heavy Duty Sealed Contactor

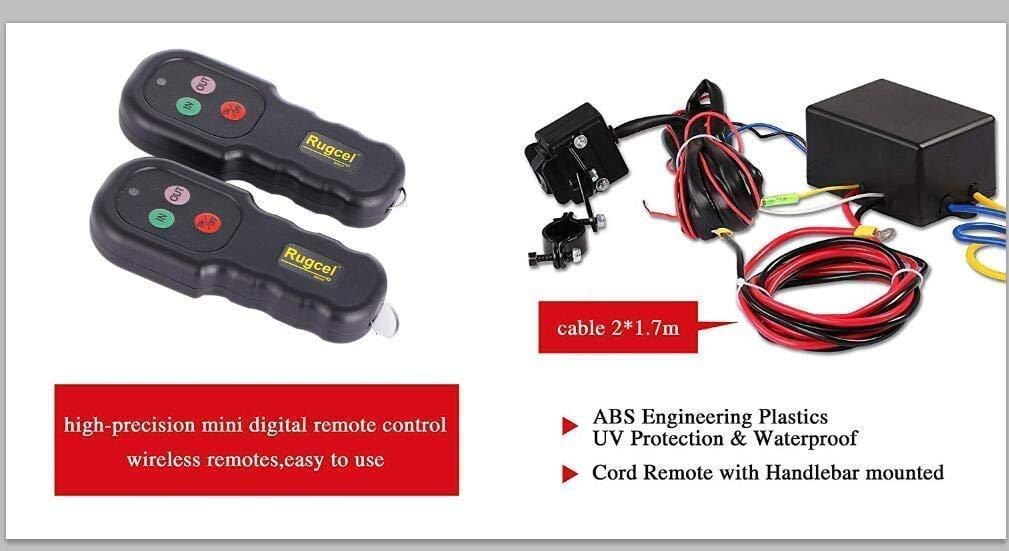

Wire/Wireless Remote Control Model for Easy Operation
4-Way Roller Fairlead
Quiet and Efficient
Waterproof and Corrosion Resistan

Specifications:
Rated line pull: 3500 lbs
Permanent magnetic motor: 1.2 HP, 12V DC
Synthetic rope: 3/16*48ft
Gear Ratio: 271:1
Drum size: 2."x5.5"
Mounting Bolt pattern: 6.5"x3.2"
Dimensions: 13.8"x4.5"x4.7"
Item Weight: 26.4 lbs

Winch Packing List:
1 x Winch with Synthetic Rope;
2 x Wired Remote Control;
2 x Wireless Remote Control;
1 x Wire Harness;
1 x Control Box;
1 x Hawse Fairlead;
1 x Hook and Strap;
1 x Mouting Screws;
1 x User Manual

Notice:
1. please read the instructions carefully and wire according to the instructions. Winches are electrical products that can cause short circuits and heat or smoke if wiring is wrong.
2.We suggest that you find a professional to install. If there are any problems on the installation, please feel free to consult at any time.

UPC: 782500217842

EAN: 782500217842

Package Dimensions: 14.8 x 13.0 x 7.6 inches
