Schwinn 430 Elliptical Machine

Product Description

Brand: Schwinn

Color: Black

Features:

  • Dual track two LCD window system allows you to monitor up to 13 different display feedbacks
  • Schwinn Connect goal tracking and data export keep you up to date on reaching your fitness goals
  • 22 programs, 2 user settings and goal tracking are all there to keep you motivated and challenged
  • 20 levels of resistance aligned with a high speed high inertia perimeter weighted flywheel make every workout smooth and quiet
  • Charging USB port and data exchange

Publisher: Nautilus, Inc.

Release Date: 2013-10-10

Details:

schwinnv3schwinn
Schwinn Logo
Introducing the New 2013 Schwinn Line

An iconic American brand with a long history of innovation, Schwinn® continues to develop products for healthy, active lifestyles. The new Schwinn cardio line consists of a family of upright and recumbent bikes and ellipticals. The product line features an updated Schwinn DualTrack™ LCD display and goal tracking functionality to set and track time, distance, and calories. These workout metrics can be uploaded via a USB thumb drive to the SchwinnConnect™ website for weekly, monthly, and yearly tracking of progress. It is also compatible with MyFitnessPal. Additionally, the console’s USB port can be used to charge your smartphone, tablet or other media device while working out so you don’t have to worry about draining your battery.

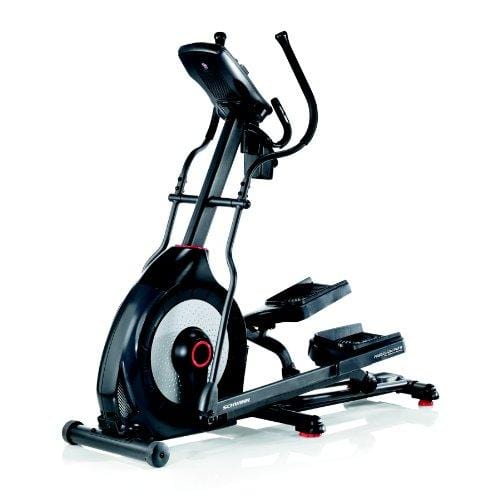

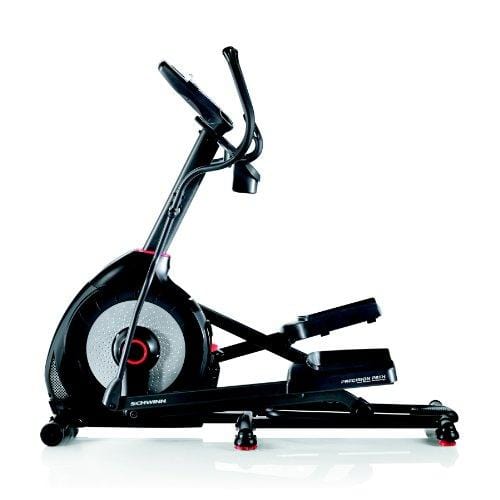

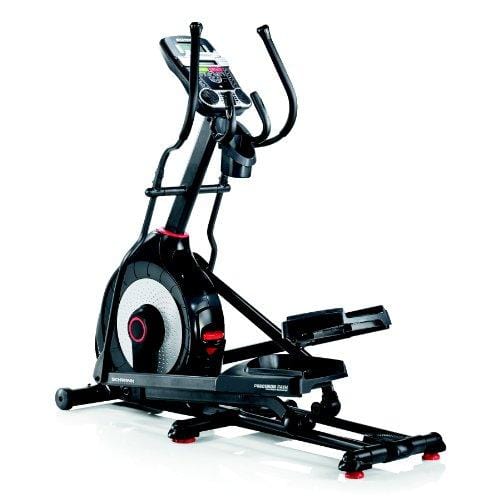

The Schwinn 430 elliptical has a ten degree, six position manual ramp. It gives you an ergonomic, fat-burning workout, with intuitive controls and customizable programs to work with your specific fitness goals. And with its integrated heart monitor, you'll know when your heart rate is in the fat-burning zone, ensuring more efficient exercise routines. With easy to use features, simple assembly, and a unique console designed with you in mind, the newly designed Schwinn 430 is made with the same high standards that have made the Schwinn name famous.

Schwinn 430

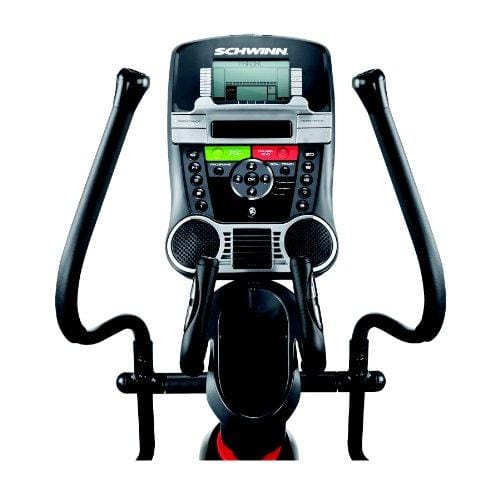

SchwinnConsole


Console

-SchwinnDualTrack™ two LCD window system allows you to monitor up to 13 different display feedbacks

-SchwinnConnect™ goal tracking and data export keeps you aware of your progress as you focus on your fitness goals

-USB charging port and data exchange to SchwinnConnect™ and/or myfitnesspal.com.

-22 programs, 2 user settings and goal tracking are there to keep you motivated and challenged
FootPlates

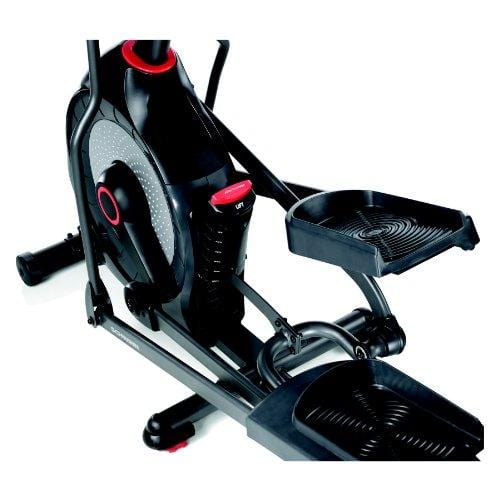

Stride & Footplates

-20” Precision Path™ stride length

-10° manual ramp range with 6 positions

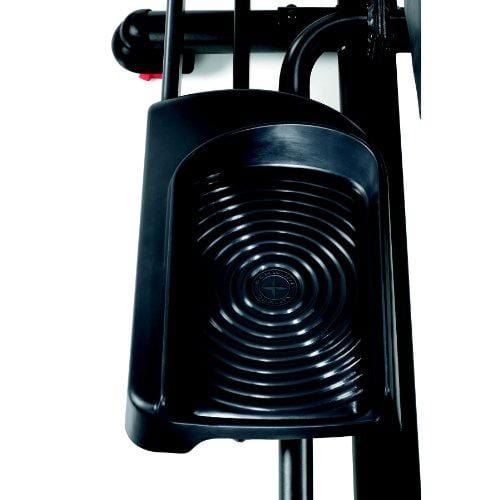

-Large articulating footplates with cushioning
SchwinnFrame


Internal Specifications
-20 levels of eddy current resistance

-A high speed, high inertia perimeter weighted flywheel keeps workouts smooth and quiet
SchwinnLifestyle


Body & Frame

-Two integrated levelers and a center frame support for a sold workout platform

- Transport wheels allow for easy movement from room to room

- Oversized crossbar tubing for added stability


Schwinn 430 Handlebars


Handlebars, Speakers, and Fan

-Ergonomically placed static handlebars with grip heart rate for comfortable use with heart rate programs

-Angled moving handlebars let you find a comfortable hand position

-Acoustic chamber speakers for big quality sound

-3-speed fan to keep you cool
Warranty


Warranty

-10 years frame

-2 years mechanical

-1 year electrical

-90 days labor

-User maximum weight: 300 lbs


Compare these Elliptical Trainers


Schwinn A40
Schwinn 430
Schwinn 470
Schwinn 520
Model
A40
430
470
520
MSRP
$599.00 $999.00
$1299.00
$999.00
Stride
17.5" stride length
20”  Precision Path™ Stride
  20” Precision Path™ Stride
14" stride length
Incline
No
10 degree manual ramp range with 6 positions
10 degree motorized ramp range with quick keys
N/A
Drive System
Perimeter weighted flywheel
High speed high inertia perimeter weighted flywheel
High speed high inertia perimeter weighted flywheel
Single stage, high-torque belt drive system
Resistance
8 Levels of Eddy Current Magnetic
20 Levels of Eddy Current Magnetic
25 Levels of Eddy Current Magnetic
Infinite Airdyne™ resistance
Display Type
LCD window
5.0" X 3.0"
SchwinnConnect™
2 LCD window System
Main: 3.0” X 5.0”
Secondary: 1.0” X 5.0”
SchwinnConnect™
2 LCD window System
Main: 3.0” X 5.0” Blue backlit
Secondary: 1.0” X 5.0” Blue backlit
Enhanced resolution LCD window
Display Readouts
Results / Speed / RPM / Resistance / Time / Distance / Calories/ Heart Rate
Time / RPM / Distance / Pulse / Speed / Calories / Resistance level / Profile / HR zone indicator / % complete indicator / Intensity meter / User indicator / Goal achievement
Time / RPM / Distance / Pulse / Speed / Calories / Resistance level / Profile / HR zone indicator / % complete indicator / Intensity meter / User indicator / Goal achievement
Time / Calories / Speed / Distance / Heart rate / RPM
Quick Keys
Yes
10 for resistance
5 for incline and 5 for resistance
No
Users
1
2
4
1
Programs
Total: 6
Profile: 6
Heartrate: 0
Other: Quickstart



Total: 22
Profile: 9 preset
Heartrate: 8 (4 beginner + 4 advanced)
Other: (4 beginner + 4 advanced + Custom)




Total: 29
Profile:12 preset
Heartrate: (4 beginner + 4 advanced + Custom)
Other: Quick Start / 2 Fitness test / Recovery test / 4 Custom

Total: 3
Profile: 3 preset
Heart Rate: 0
Othe: 0

Performance Tracking
No
Goal Tracker Goal Tracker No
Heart Rate Monitor
Grip Grip Grip (telemetric enabled console)
Grip
Footplates
Standard with articulation
Large articulating with cushioning
Large articulating with cushioning
Large flexible for multiple foot positions
Handlebars
Moving and static
Moving and static
Moving and static
Static
Fan
No
Yes – 3 speed
Yes – 3 speed
No
Sound System
Yes Yes – acoustic chamber for big sound
Yes – acoustic chamber for big sound No
USB Connection
No
Yes – USB charging and data export to Schwinn connect & myfitnesspal.com
Yes – USB charging & data export to Schwinn connect & myfitnesspal.com
No
Water Bottle Holder
Yes
Yes Yes Yes
Media Tray
Yes Yes Yes Yes
Maximum User Weight
275 lbs
300 lbs
300 lbs
300 lbs
Other Features
Transport wheels / levelers
Transport wheels / 2 integrated levelers
Transport wheels / 2 integrated levelers Transport wheels / 4 levelers
Power
Battery (not included)
AC Adaptor (sold separately)
AC Adaptor (included)
AC Adaptor (included)
Battery (not included)
Warranty Information
Frame: 2 years
Mechanical: 6 months
Electrical: 6 months
Labor: N/A
Frame: 10 years
Mechanical: 2 years
Electrical: 1 year
Labor: 90 days
Frame: 10 years
Mechanical: 2 years
Electrical: 1 year
Labor: 90 days
Frame: 5 years
Mechanical: 1 year
Electrical: 1 year
Labor: 90 days


UPC: 718645503069

EAN: 0708447907400

Package Dimensions: 52.0 x 34.0 x 23.0 inches
