Brand: SINOKING

Color: Black

Features:

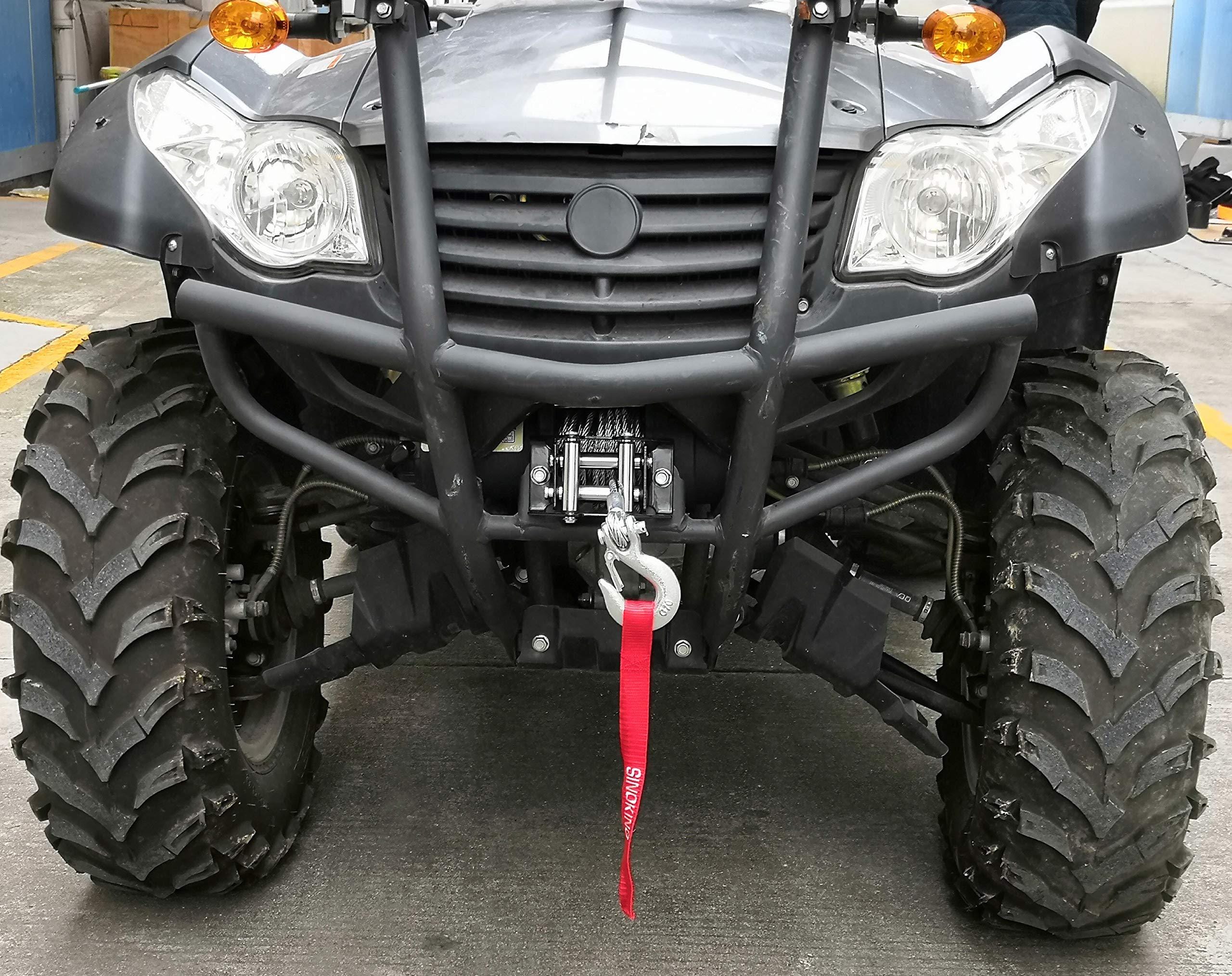

• 1.5HP,12V permanent magnetic, designed for UTV, ATV, boat, modified vehicles.
• 3000lb（1361kg）maximum capacity and 4-way roller fairlead, aircraft wire rope.
• Smooth and reliable all-metal three-stage planetary gear train
• Designed to keep dust and water out with an IP67 waterproof rating.
• Fully independent and automatic braking ensures safety and reliability.

Publisher: SINOKING

Details: SINOKING Series is designed for various vehicles. Off-roader can easily control the winch in the harsh environment.
SINOKING 3000lbs winch is suitable for most ATV & UTV. It's small and light. Automatic braking system and special oil seal (waterproof and dust-proof) guarantee the normal operation in harsh environments. High quality three-stage planetary gear set (gear ratio 138:1). Aircraft wire cables.
SPECIFICATION Pulling Capacity: 3000lbs(1361kgs) single line

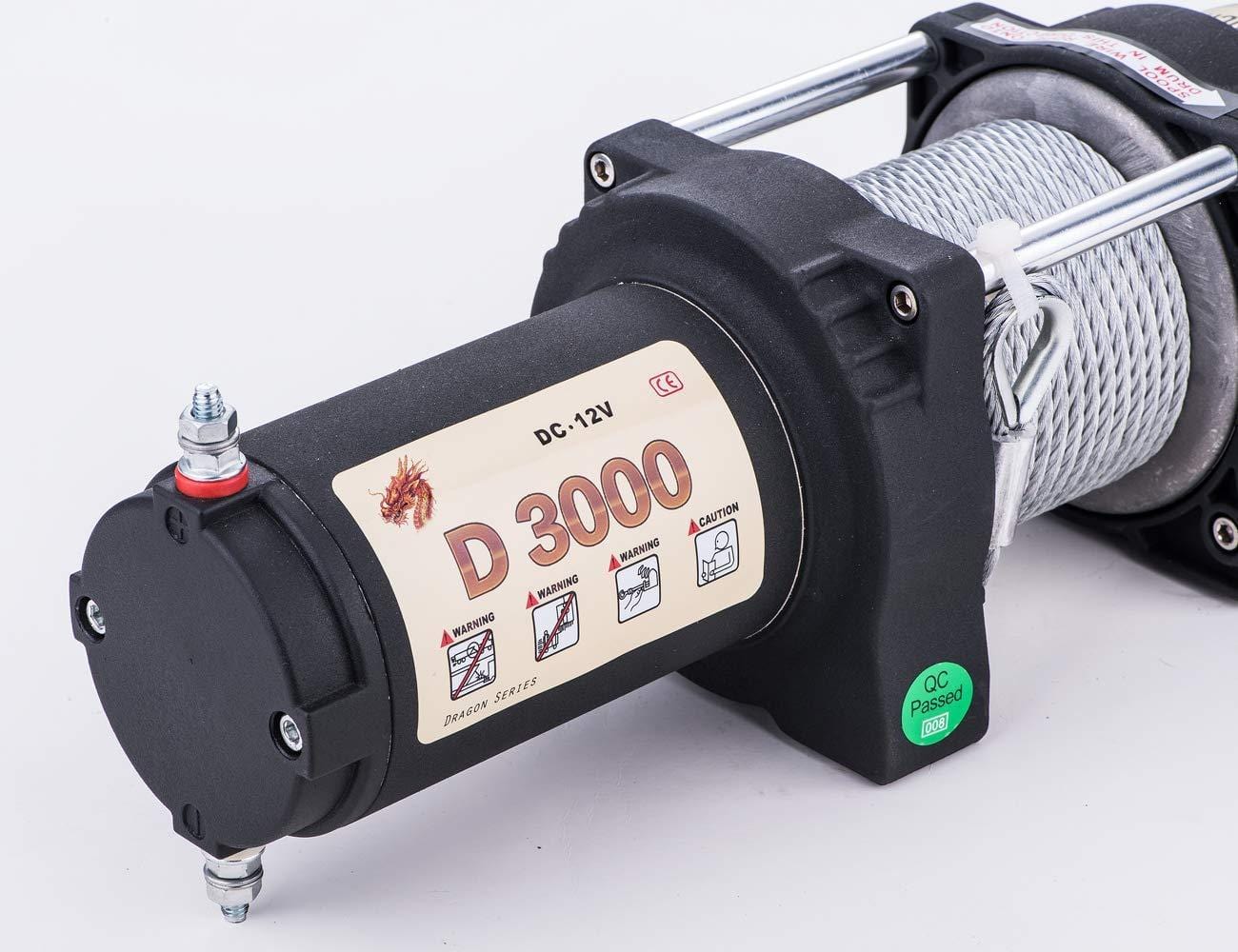

Motor: permanent magnetic motor 1.5hp/1.0kw DC 12V Gear Train: 3 stage planetary
Gear ratio: 138:1 Braking System: Automatic braking in the drum
Fairlead: 4-way Roller fairlead Cable: 4.8mm×12m Aircraft wire cable
Drum size: 50mm×76.5mm Product dimensions: 351mm×114mm×116mm
Mounting bolt pattern: 124mm×76mm N.W: 23lbs(10.5KGS)
Packaging； 385mm×370mm×155mm

UPC: 743815155557

EAN: 743815155557

Package Dimensions: 15.2 x 14.6 x 6.2 inches
