Brand: MotoAlliance

Color: Steel

Features:

• Manufactured in an ISO-TS16949 Certified Factory using Military-Grade Materials
• Includes Wireless and Cabled Remote Switches, Integrated Contactor, 85' Steel Cable and Roller Fairlead
• IP67 Waterproof Rating; Limited Lifetime Warranty
• Mount Pattern: 10" x 4.5"

Publisher: MotoAlliance

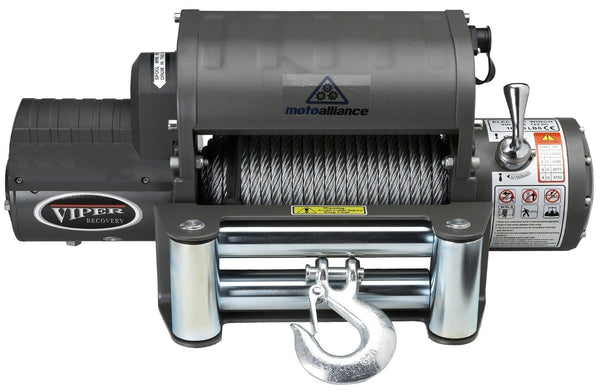

Details: VIPER 12,000lb Recovery 4x4 Truck Winch are perfect when needing a durable winch for Jeeps, Tow Trucks and all Recovery vehicles. Constructed with permanent magnet motors and steel gears, the 12,000 winch delivers a reliable performance that users recognize and trust. Fully sealed with a planetary metal gear train, it is heavy duty and includes all the features and extras that users recognize and trust. Backed by a Limited Lifetime Warranty and toll-free customer service line, this metal bodied winch has a standard mounting bolt pattern of 10″ x 4.5″.

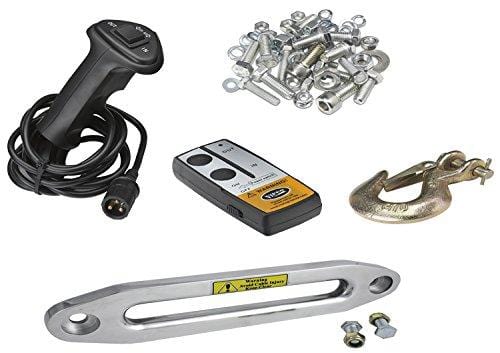

Kit Contents:
85′ x 3/8″ STEEL Cable

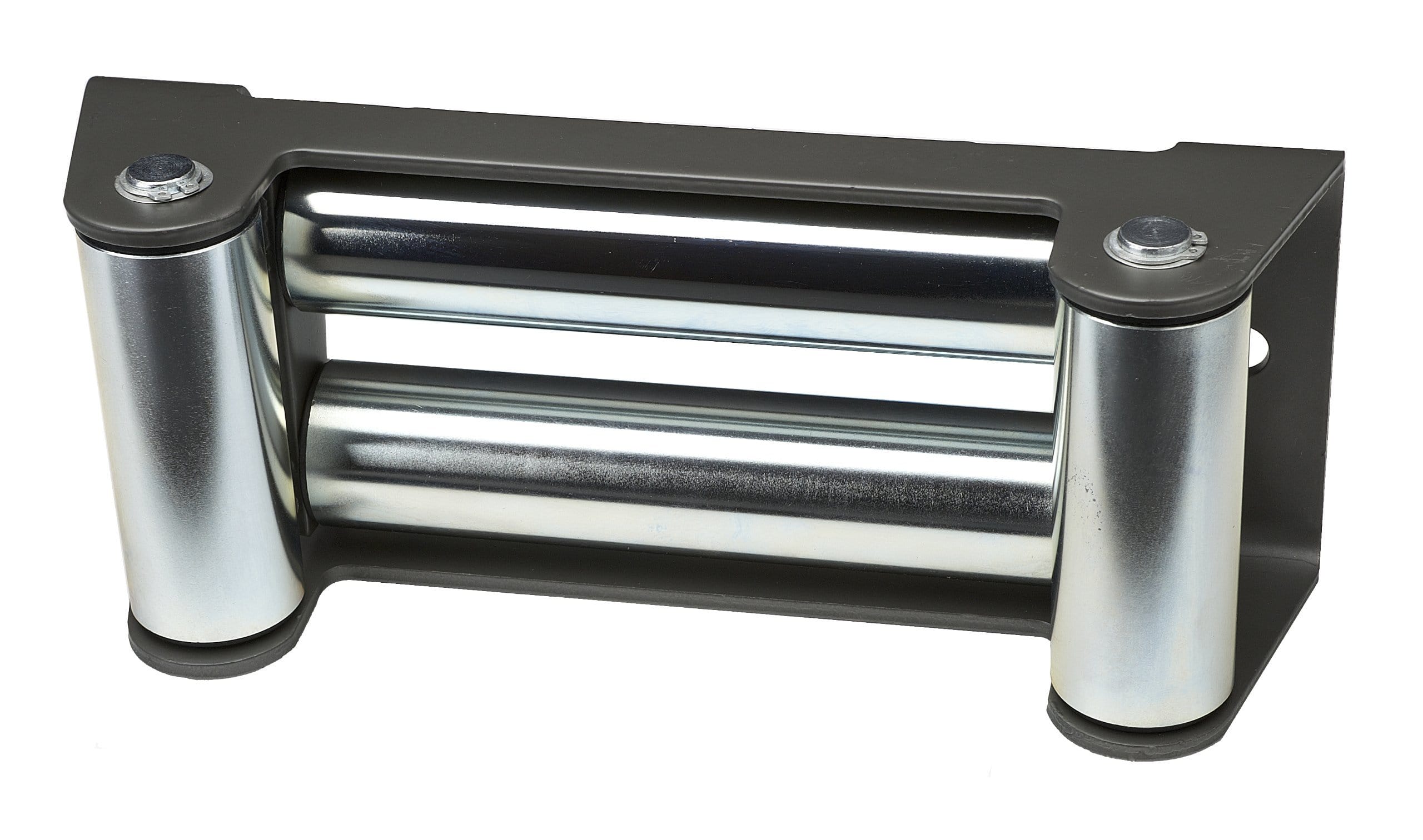

Roller Fairlead
Integrated Contactor/Solenoid

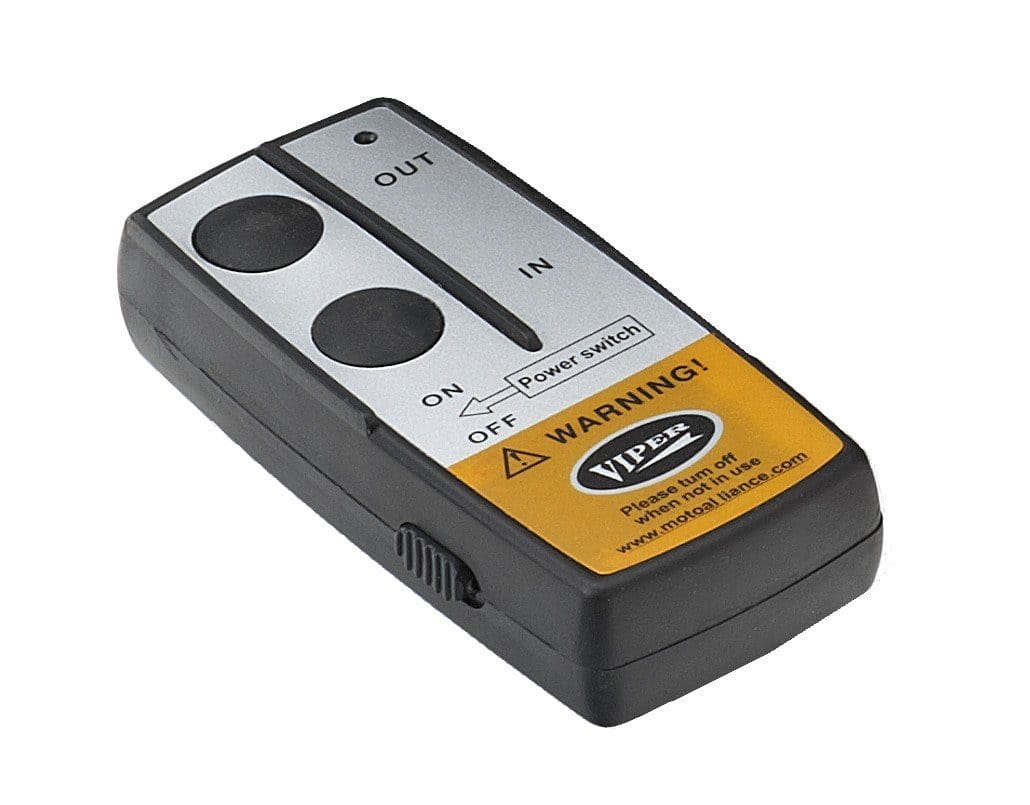

Wireless Remote Switch

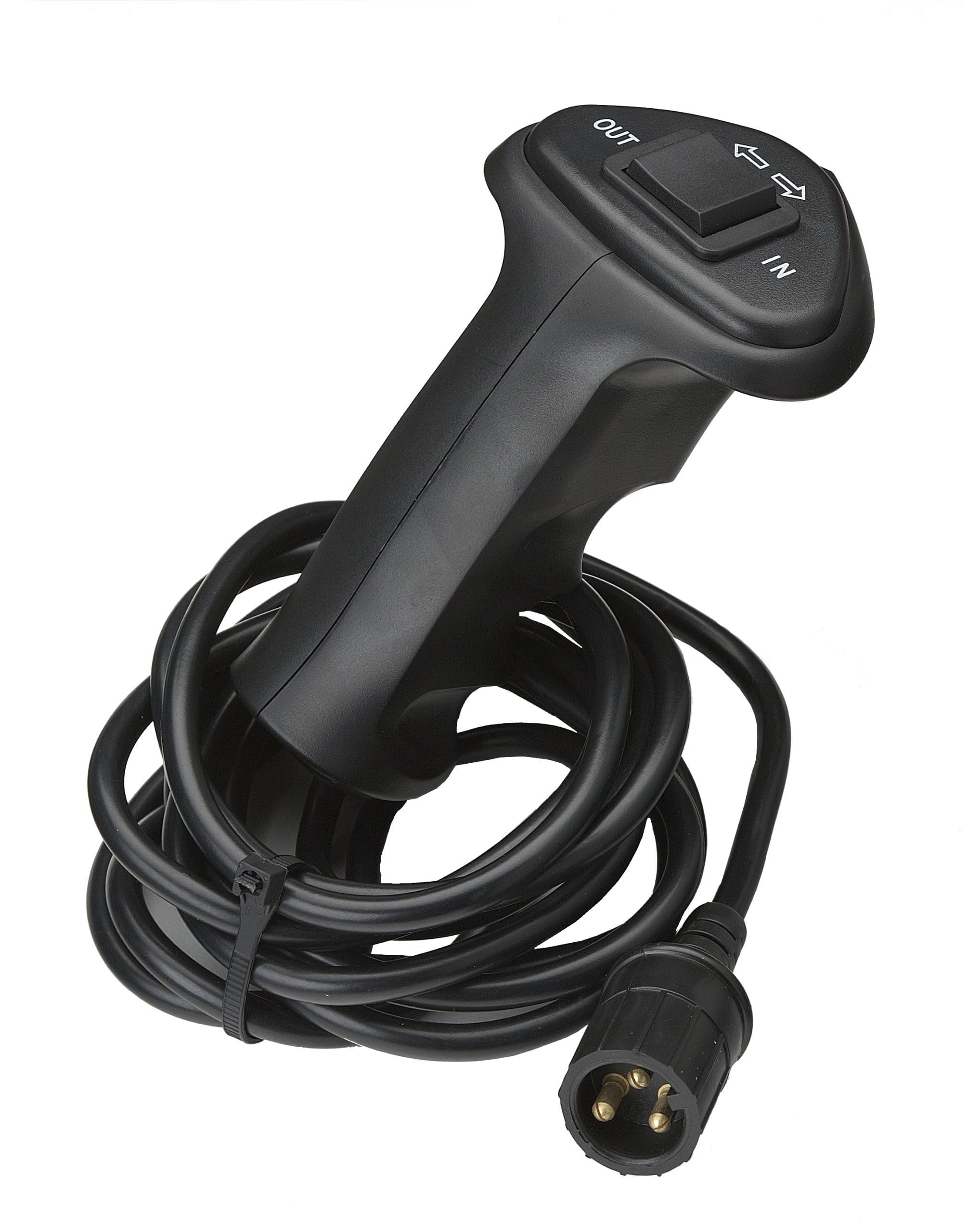

11′′ Cabled/Tethered Remote Switch
Clevis Hook
Mounting Bolt Pattern - 10.0″ x 4.5″ (254mm x 114.3mm)
Limited Lifetime Warranty

Specs
Cable - Steel
Rated Line Pull - 12,000lbs (5443.10 kgs)
Gearing / Gear Ratio - 3-Stage planetary / 265:1
Brake - Automatic In-the-drum
Clutch - Sliding Ring Gear
Wiring - 6ft of 2-gauge (English) / 196.4 (Metric)Wiring
Dimensions - 21.3″ (L) x 6.3″ (D) x 10.5″ (H) (541mm x 160mm x 268mm)
Mounting Bolt Pattern - 10.0″ x 4.5″ (254mm x 144.3mm)


MotoAlliance warrants to the original purchaser that VIPER 12,000 winch (a) mechanical components will be free of defects in material and workmanship, and (b) electrical components will be free of defects in material and workmanship for a period of one (1) year from purchase.

UPC: 810541021767

EAN: 810541021767

Package Dimensions: 24.2 x 12.7 x 12.7 inches
