Brand: ZEAK

Features:

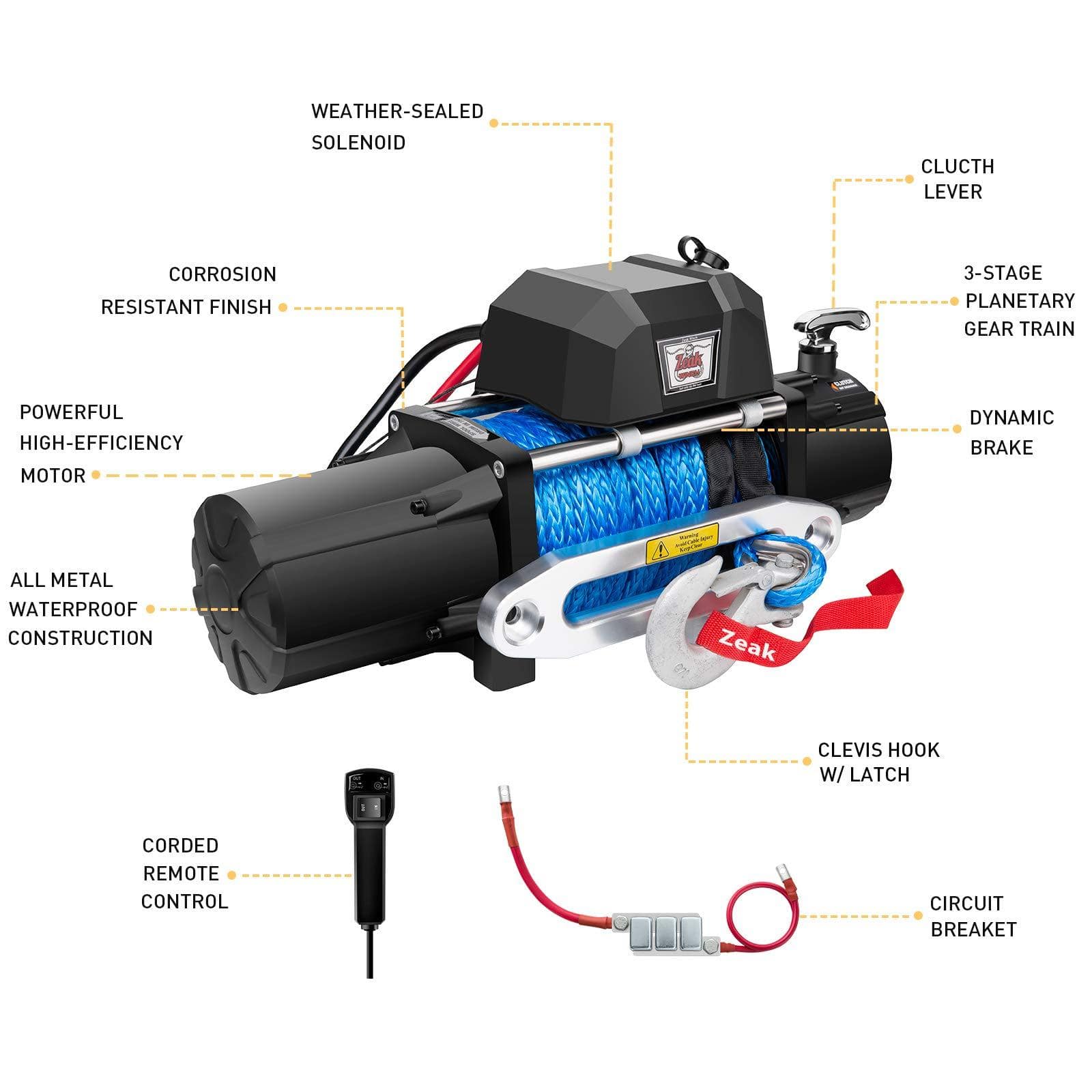

• The zeak electric towing Winch with an impressive 12000lbs of pulling power and fast line speed under load, is a compact sized winch to help you with those heavy jobs around the off-road or on the work site.
• [HASSLE FREE] a durable 3/8''x86' synthetic rope, heavy duty sealed high amperage contactor, dynamic braking system, 6 HP DC motor make our winch power enough to haul your vehicle back on track-fast.
• The 3-stage planetarygear train convert the motor power into more powerful tension with line speed of 4.6 feet per minute full load and 16 feet per minute no load.
• Please read the instruction carefully. Winch can cause short circuits and heat or smoke if wiring is wrong. We suggest you can find a professional to install.
• All-mental construction powerful winch offer you a different life. keep moving on your trip, getting stuck never become a problem. Our electrical components covered by the 2 YEARS WARRANTY. If you have any problems, please consult with us at any time.

Publisher: ZEAK INC.

Details:

12000lbs WINCH DETAL:

Rate line:12000lbs(5455kgs)
Motor:5.25kw,7hp,12V DC series wound
Control: Remote switch 11.5ft(3.5m)lead
Gear train:3 stage planetary
Gear reduction ratio:203:1
Braking Action:Automatic in-the Drum
Drums size:Diameter 2.5"(63.5mm)length8.8"(224mm)
Cable:24.4m of 9.5mm diameter synthetic rope
Fairlead: Aluminum Fairlead
Remote Control:Include
Finsh:Matt Black

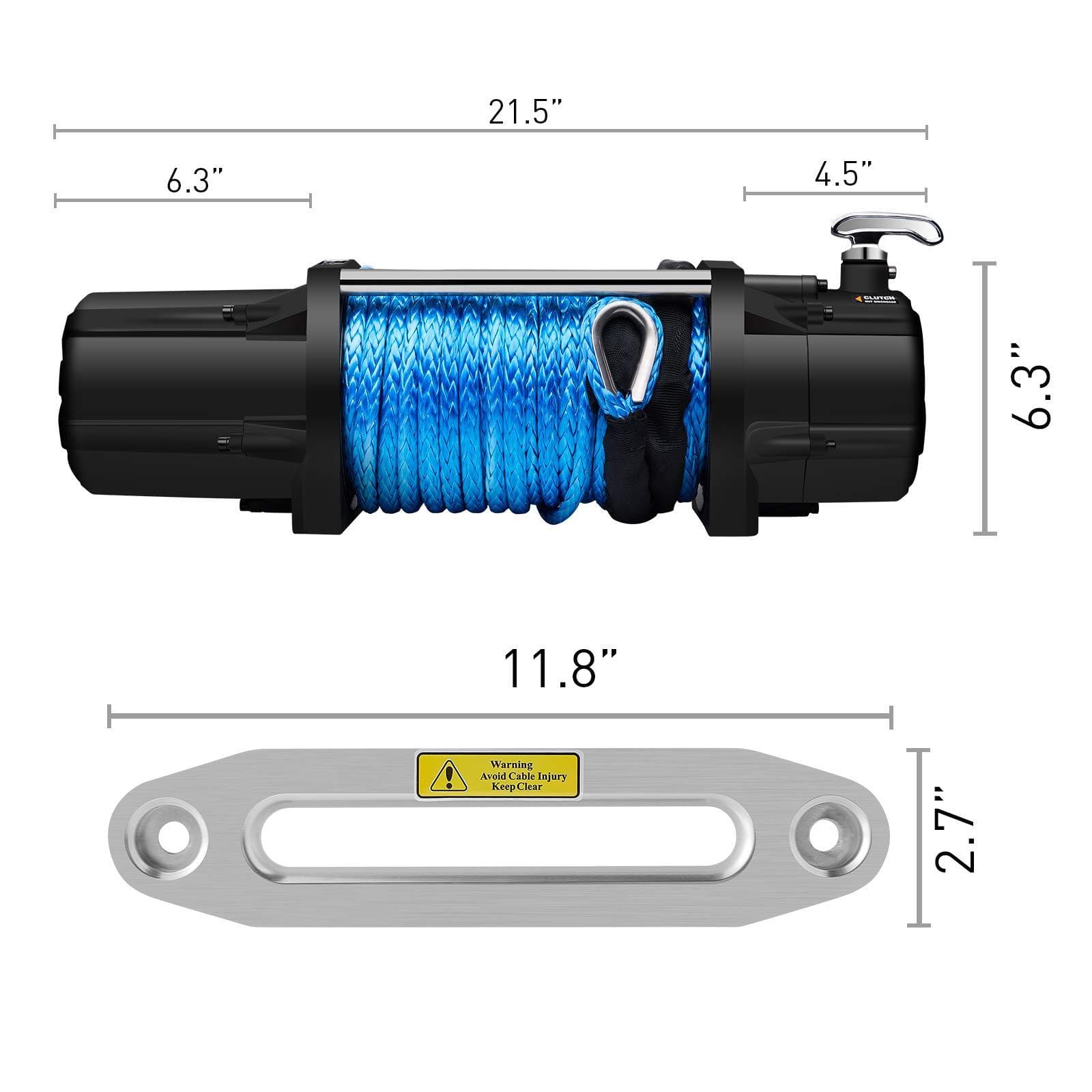

Overall dimensions:(LxWxH)21.5¡å¡Á6.3¡å¡Á8.35¡å(547¡Á160¡Á217mm)
Mounting Bolt Pattern:10.00¡À0.015"x4.50¡À0.010"(254x114.3mm)

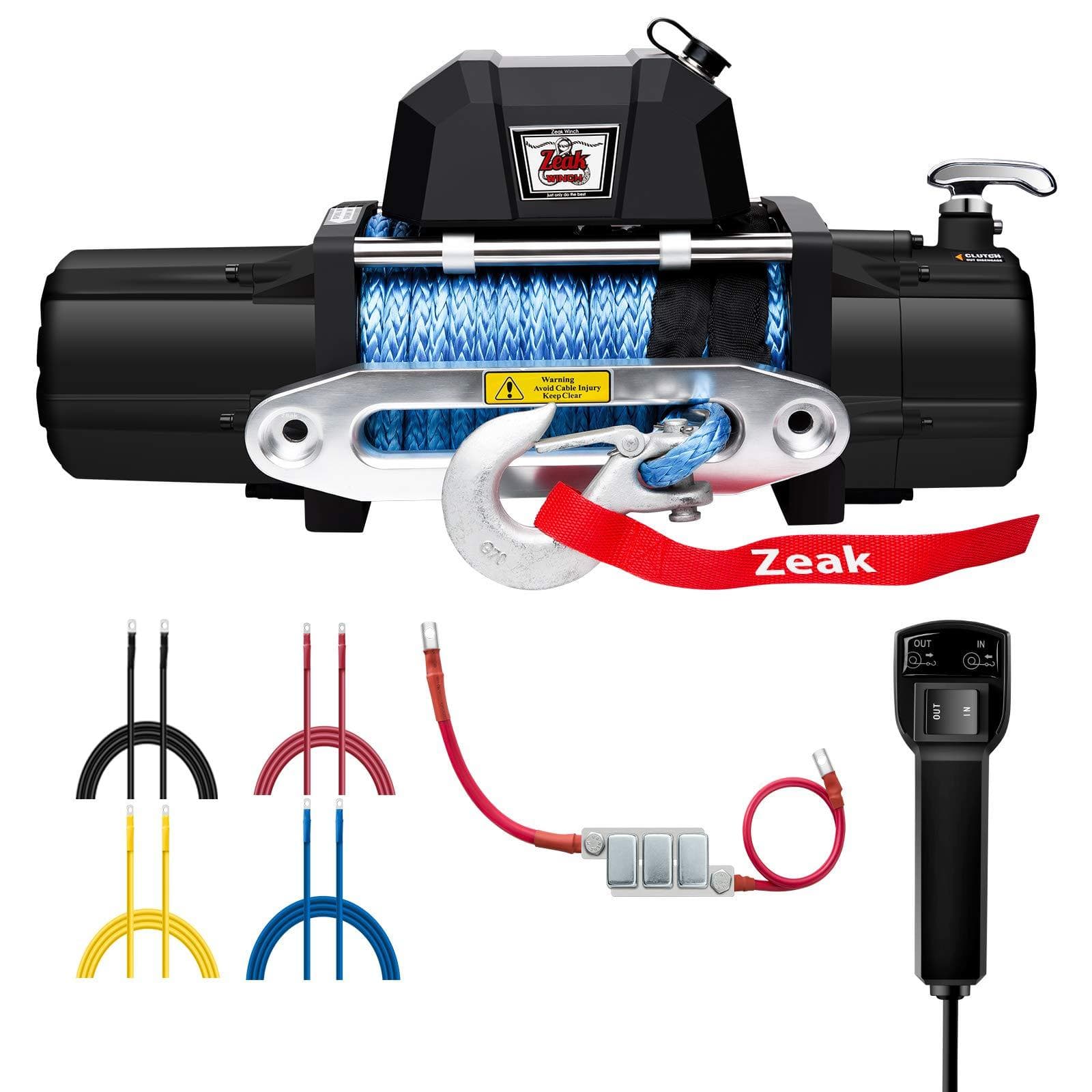

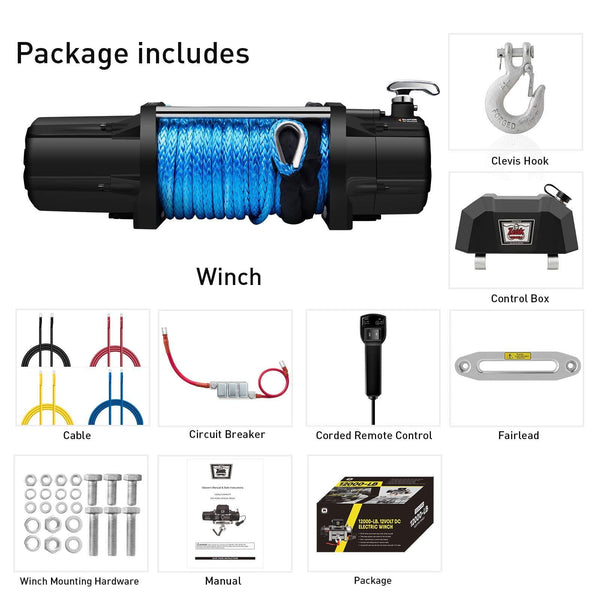

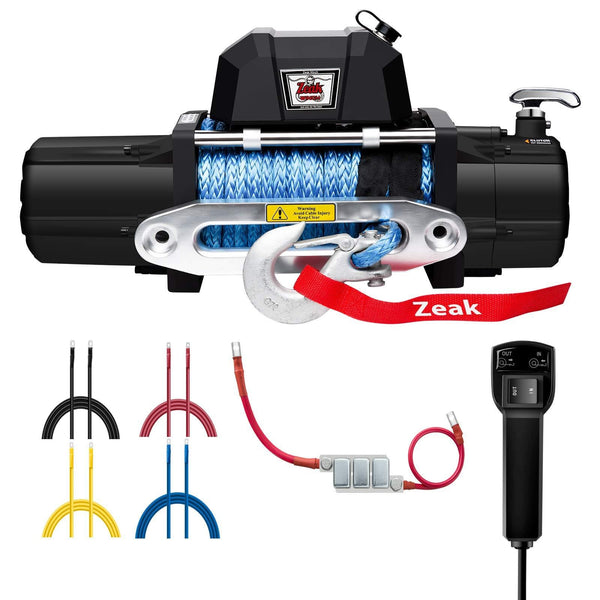

Package included:


1 x Electric winch
1x Roller Fairlead
2x Fairlead mounting hardware
1x Hook
1x Red Strap
1x pendant controller
1x power wire
1 x Instruction manual

UPC: 606314625474

EAN: 606314625474

Package Dimensions: 24.0 x 13.6 x 10.6 inches
