Brand: ZESUPER

Features:

• Please confirm whether the installation plate is suitable before purchase.Fixed bolt pattern :3.13 in. (79.5 mm). Special designed for atv, uyv, car, boat, trucks, jeeps, modified vehicles and multi purpose utility trailers
• Heavy-duty sealed contactor, state of the art 500 amp relay.High efficiency - 6.4 feet per minute when fully loaded, 24.6 feet per minute when empty
• Installation bolt type :10.0 "x 4.50", total dimensions :(length x width x height)20.3 x 6.3 x 7.9(in), 5.5 HP 12v series winding motor and three-stage planetary gear system, free winding clutch, Synthetic rope 9mm*18m
• Fast circuit speed and high sensitivity of remote control.Waterproof and sandproof, unique brake design, excellent control.Suitable for all kinds of environment.
• All winches are provided with lifetime technical support and one-year limited warranty. If there is any problem during the purchase period, please contact us at any time, and we will provide the most professional and timely service.

Publisher: ZESUPER

Details: ZESUPER Waterproof Synthetic Rope Winch - 9500 lb. Load Capacity

Features
Rated line Pull (single): 9500 lbs (4310kgs)
Motor: 5.5hp/4.1kw Series Wound
Automatic Load-Holding
Gear Ratio: 265:1
Clutch: Sliding Ring Gear
Heavy Duty Sealed Contactor
Heavy Duty4-way roller fairlead
Three-stage Planetary Gear System
24 Meters Synthetic Rope cable
Bonus One Wireless Remote Controllers+One Hand Controller
IP67 standard, powerful waterproof and dustproof function (in normal conditions)
WARNING
When extending winch cable, ensure that at least five wraps of cable remain on drum at all times. Failure to do this could result in the cable parting from the drum under load. Serious personal injury or property damage may result.

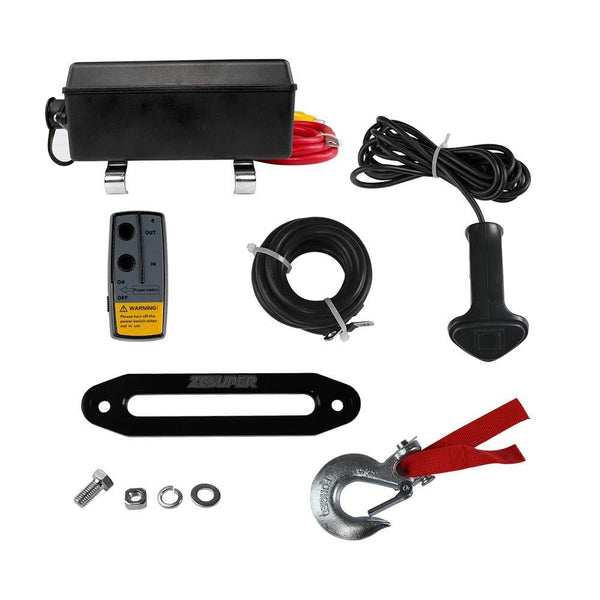

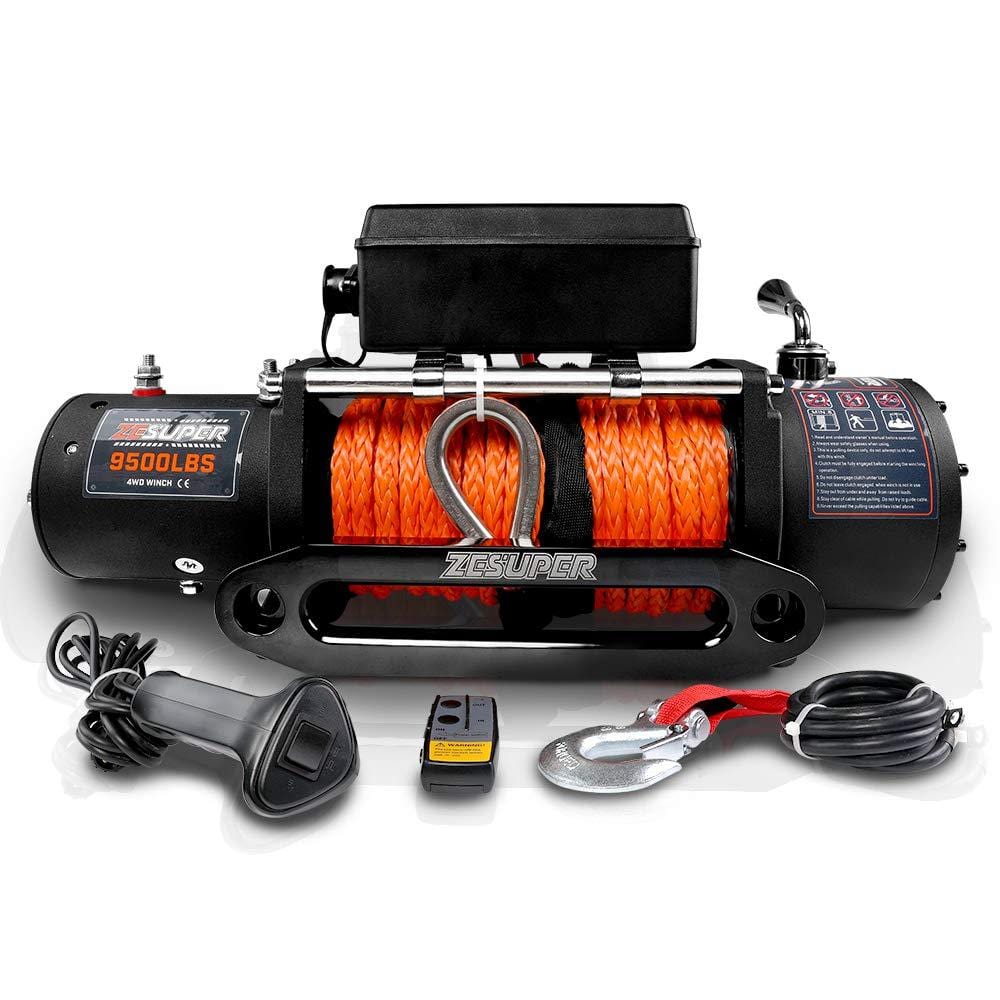

IN THE BOX
9500LBS DC 12V Winch x1
Wireless Remote Controller x1
Hand Remote Controller x1
User Manual x1
Set of Wire Cables x1
Ssolenoid contactor x1
et of Bolts x 1
Control Box x1
Clevis Hook x1

Notice!!!
1.We suggest that you find a professional to install. If there are any problems on the installation, please feel free to consult at any time.
2. please read the instructions carefully and wire according to the instructions. Winches are electrical products that can cause short circuits and heat or smoke if wiring is wrong.

UPC: 778862898461

EAN: 778862898461

Package Dimensions: 23.6 x 10.2 x 8.3 inches
